Deskripsi:

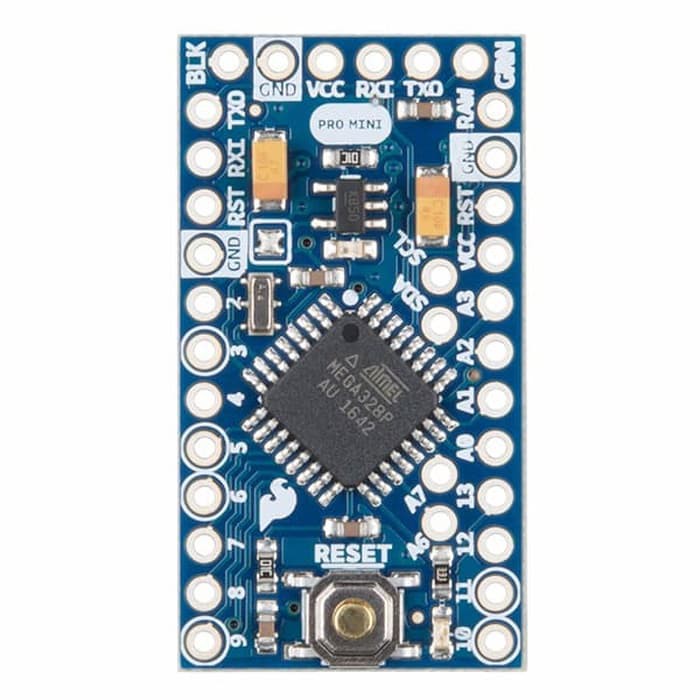

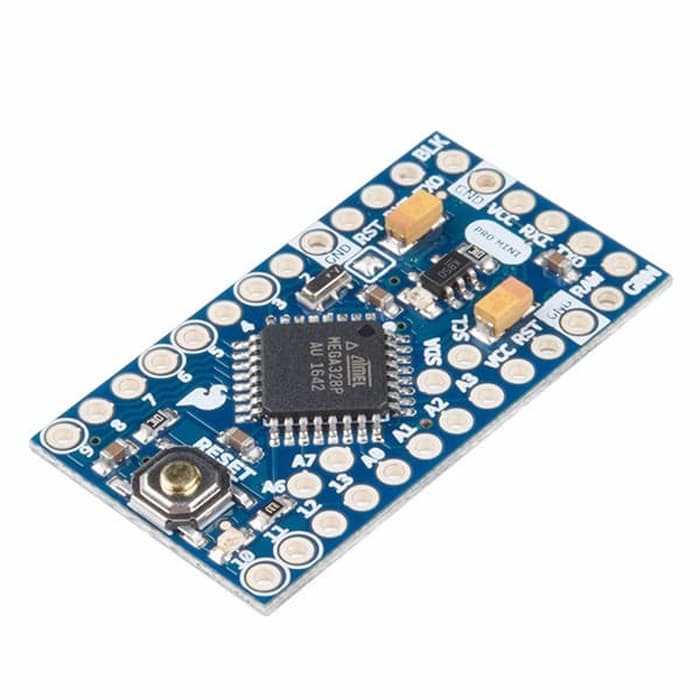

ATmega328 running at 8MHz with external resonator (0.5% tolerance)
Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
0.8mm Thin PCB
USB connection off board
Weighs less than 2 grams!
Supports auto-reset
3.3V regulator
Max 150mA output
Over current protected
DC input 3.3V up to 12V
On board Power and Status LEDs
Analog Pins: 8
Digital I/Os: 14
0.7×1.3″ (18x33mm)
