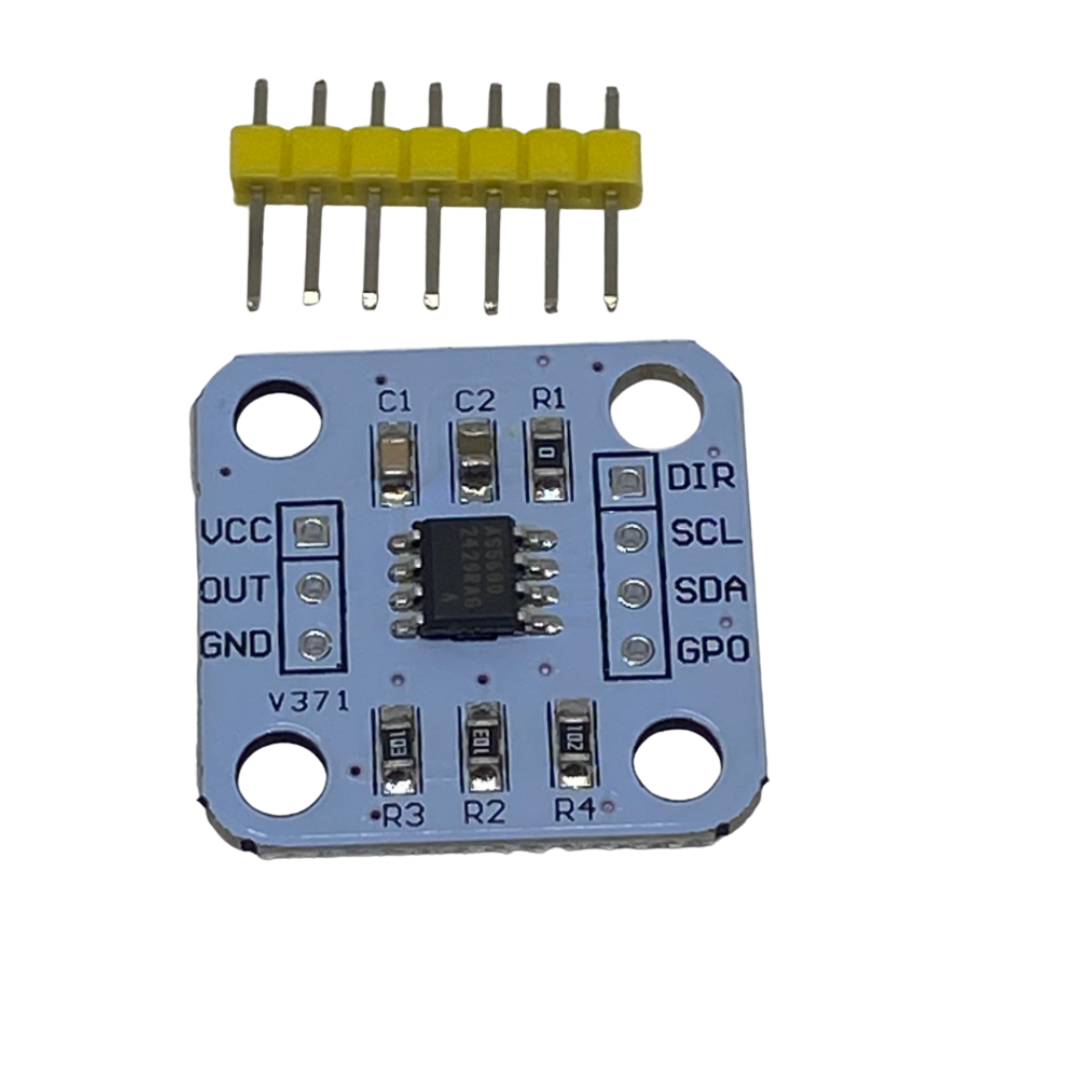

AS5600 Magnetic encoder induction sensor

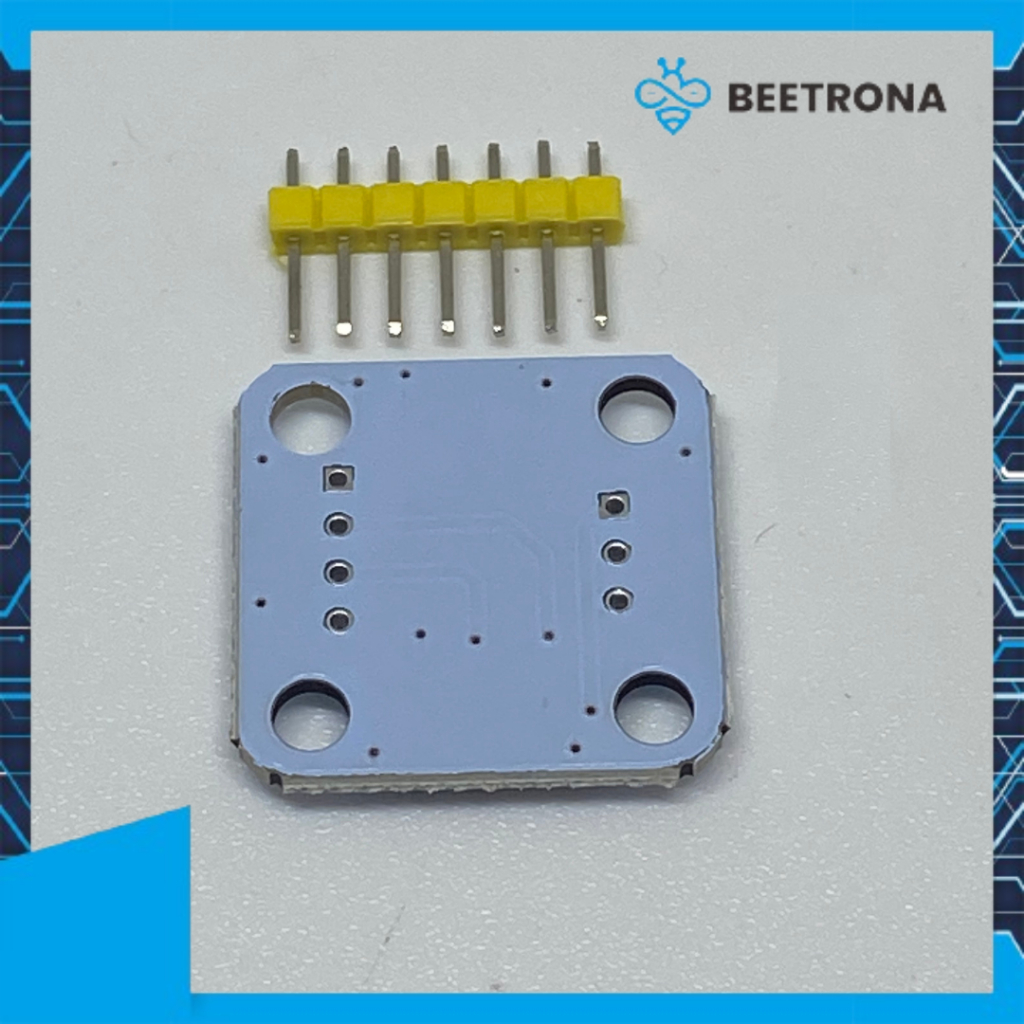

AS5600 Magnetic Encoder Induction Angle 12bit Module

Features:

Non-contact magnetic induction angle measurement module.
High precision, a variety of output modes:IIC,PWM And voltage.
Board Size：23.3 × 22.8 mm
Kit Weight: 2.6g

Electrical parameters:

– VCC: 3.3V
– GND: Power Ground
– Out: PWM /Analog voltage output
– DIR: Rotational direction (ground=Value increases clockwise; then VCC =Clockwise values are decreased)
– SCL: IIC The communication clock line
– SDA: IIC Data communication line
– GPO: Mode selection (internal pull ground=Programming mode B)
