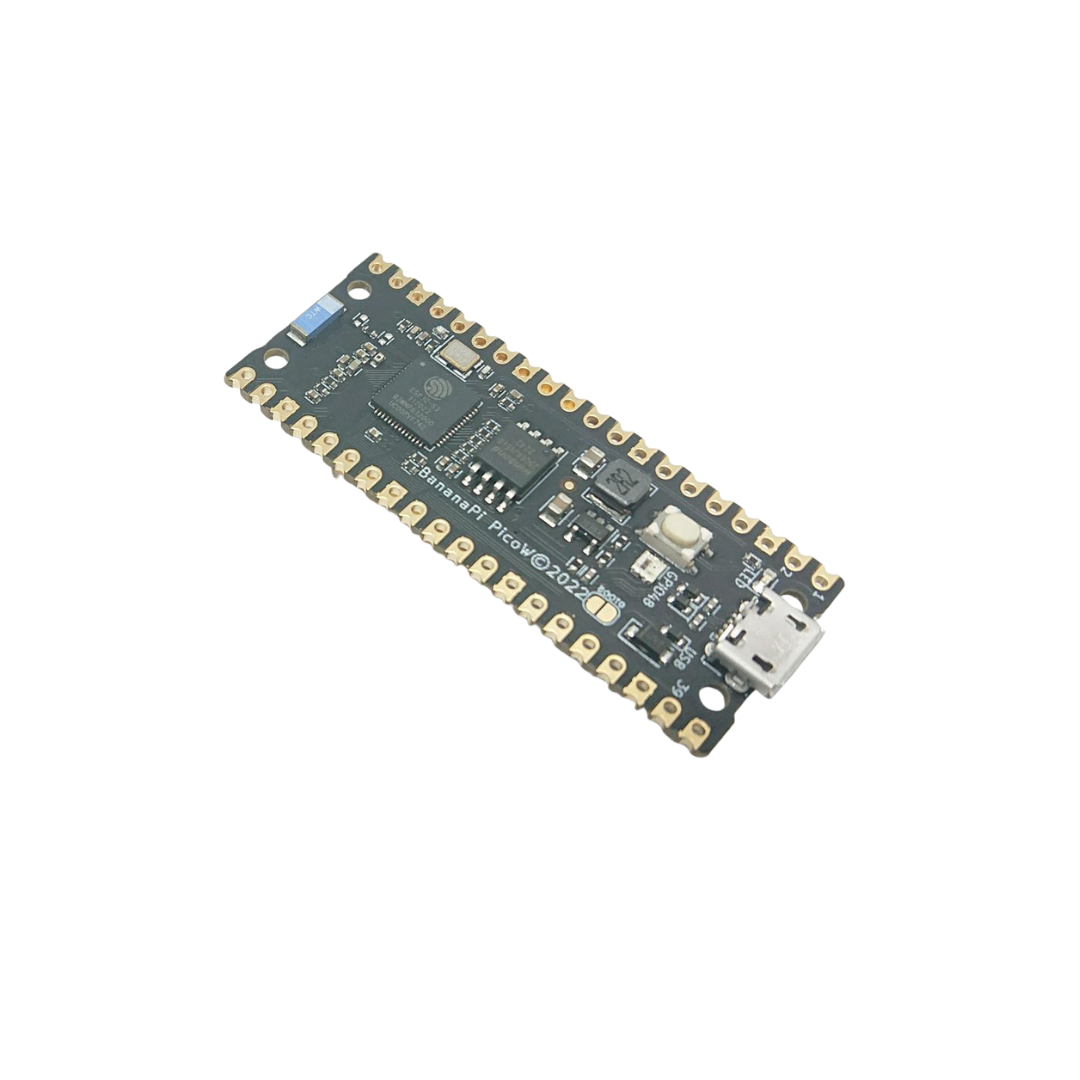

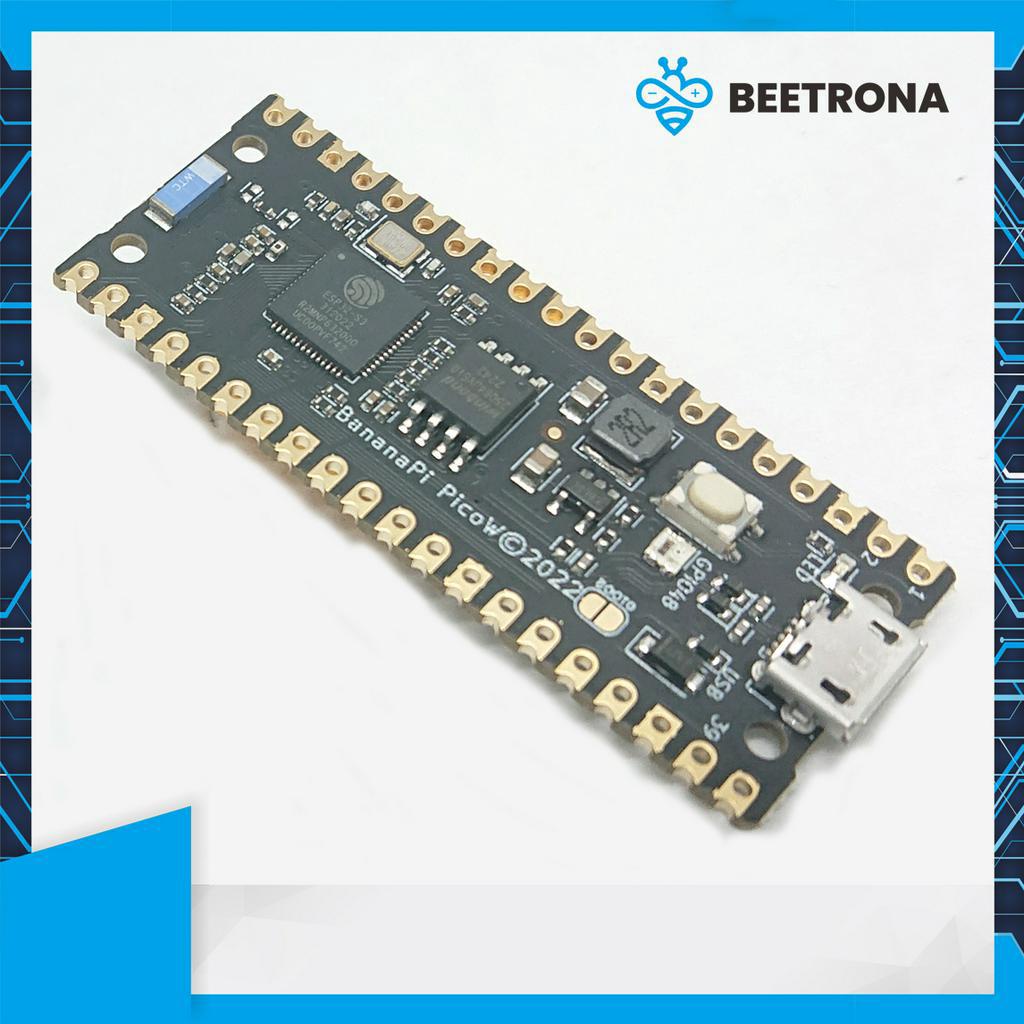

Banana Pi Pico W S3 ESP32 BPI Wifi Bluetooth Board

Banana Pi Pico W

Specification :

– SoC : ESP32-S3, Xtensa® 32-bit LX7 dual core
– Basic frequency : 240MHz at max
– Operating Temperature : -40°C ~ +85°C
– On-chip ROM : 384KB
– On-chip SRAM : 512KB
– Extereal FLASH : 8MB
– In-packge PSRAM : 2MB
– WIFI : IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
– Bluetooth : Bluetooth 5, Bluetooth mesh
– GPIO : 27pins
– ADC : 2 × 12-bit SAR ADC supporting 18 analog channel inputs
– TOUCH Capacitive Touch Sensor : 14
– SPI : 4
– I2C : 2. Support master or slave mode
– I2S : 2, input and output of serial stereo data
– UART : 3, supports asynchronous communication (RS232 and RS485) and IrDA
– PWM : 8 independent channels, 14-bit precision
– MCPWM : 2
– USB : 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
– Low power consumption current : 10uA
– Working Voltage : 3.3V
– Input voltage : 3.3V~5.5V

Untuk Info lebih lanjut silahkan cek website wiki banana pi
