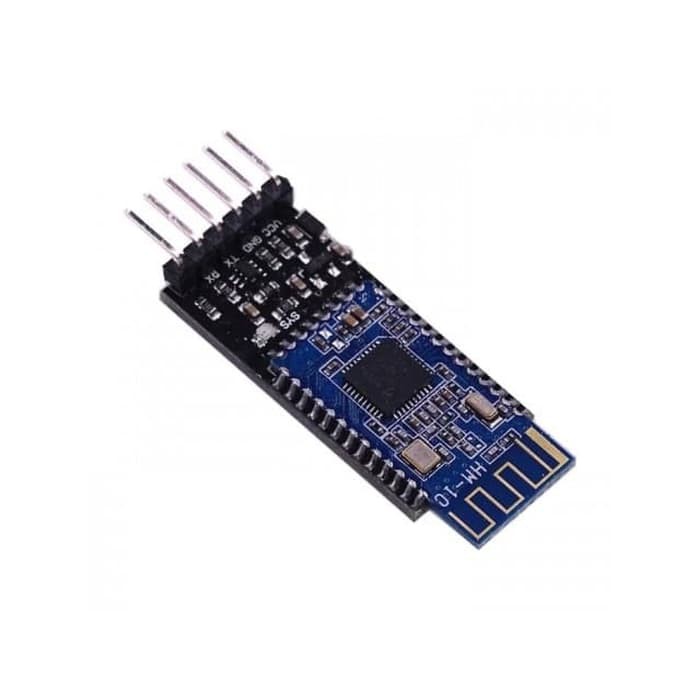

Bluetooth 4.0 Module HM-10 (Master-Slave)

Jual HM10 Bluetooth BLE 4.0 Serial 6 Pin Bluetooth Module

HM-10 Basic specs:

+2.5v to +3.3v
Requires up to 50mA
Uses around 9mA when in an active state
Use 50-200uA when asleep
RF power: -23dbm, -6dbm, 0dbm, 6dbm
Bluetooth version 4.0 BLE
Default baud rate pre firmware V700 is 9600
Default baud rate firmware V700 and up is 115200
Default PIN is 000000
Default name is HMSoft
Based on the CC2540 or the CC2541 chip
