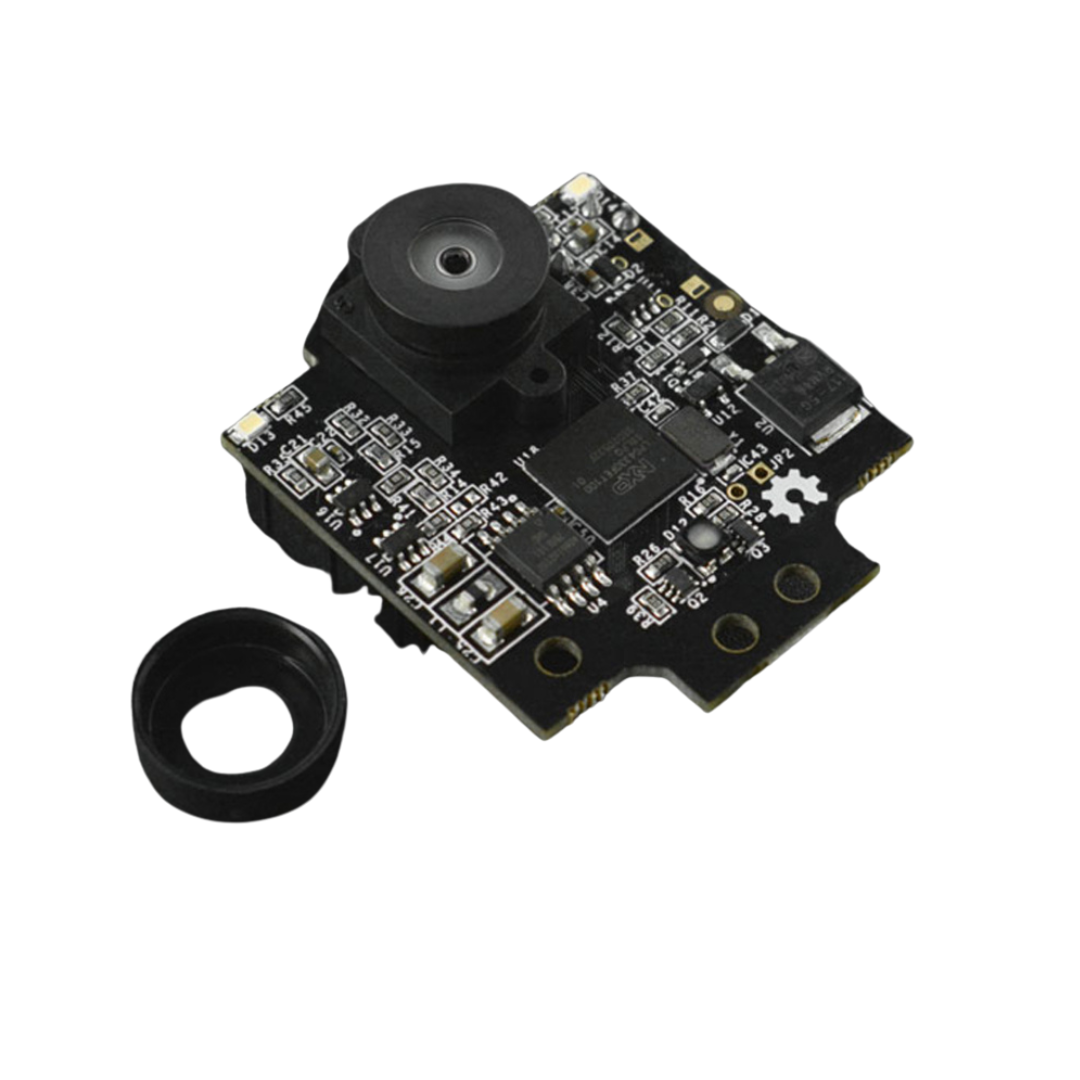

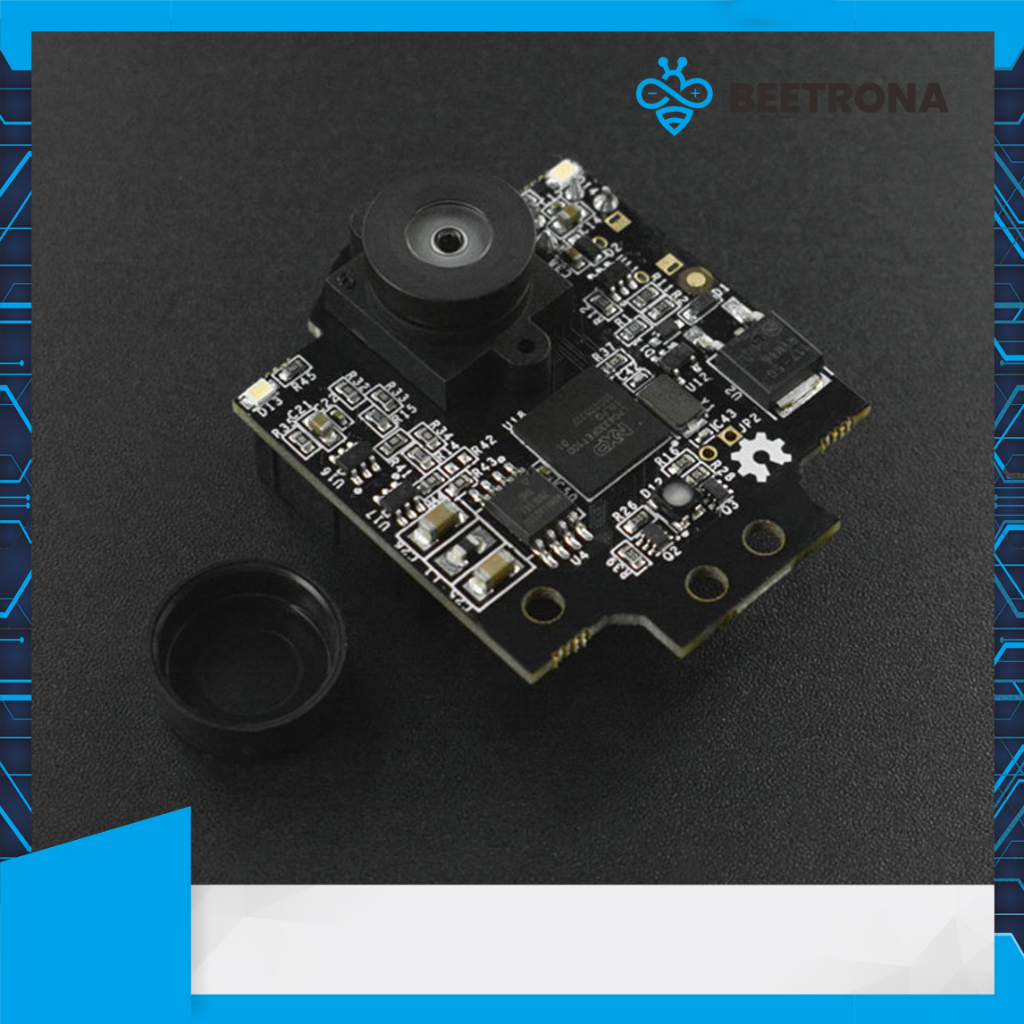

Pixy 2 CMUcam5 Image Sensor Recognition
Features :
– Pixy2 detects lines, intersections and small barcodes, intended for line-following robots
– Improved framerate – 60 frames-per-second
– Tracking algorithms have been added to color-based object detection
– Improved and simplified libraries for Arduino, Raspberry Pi and other controllers
– Integrated light source
Specification :
– Lens type : Standard M12
– Processor : NXP LPC4330, 204 MHz, dual core
– Image sensor : Aptina MT9M114, 1296×976 resolution with integrated image flow processor
– Lens field-of-view : 60 degrees horizontal, 40 degrees vertical
– Power consumption : 140 mA typical
– Power input : USB input (5V) or unregulated input (6V to 10V)
– RAM : 264K bytes
– Flash : 2M bytes
– Available data outputs : UART serial, SPI, I2C, USB, digital, analog

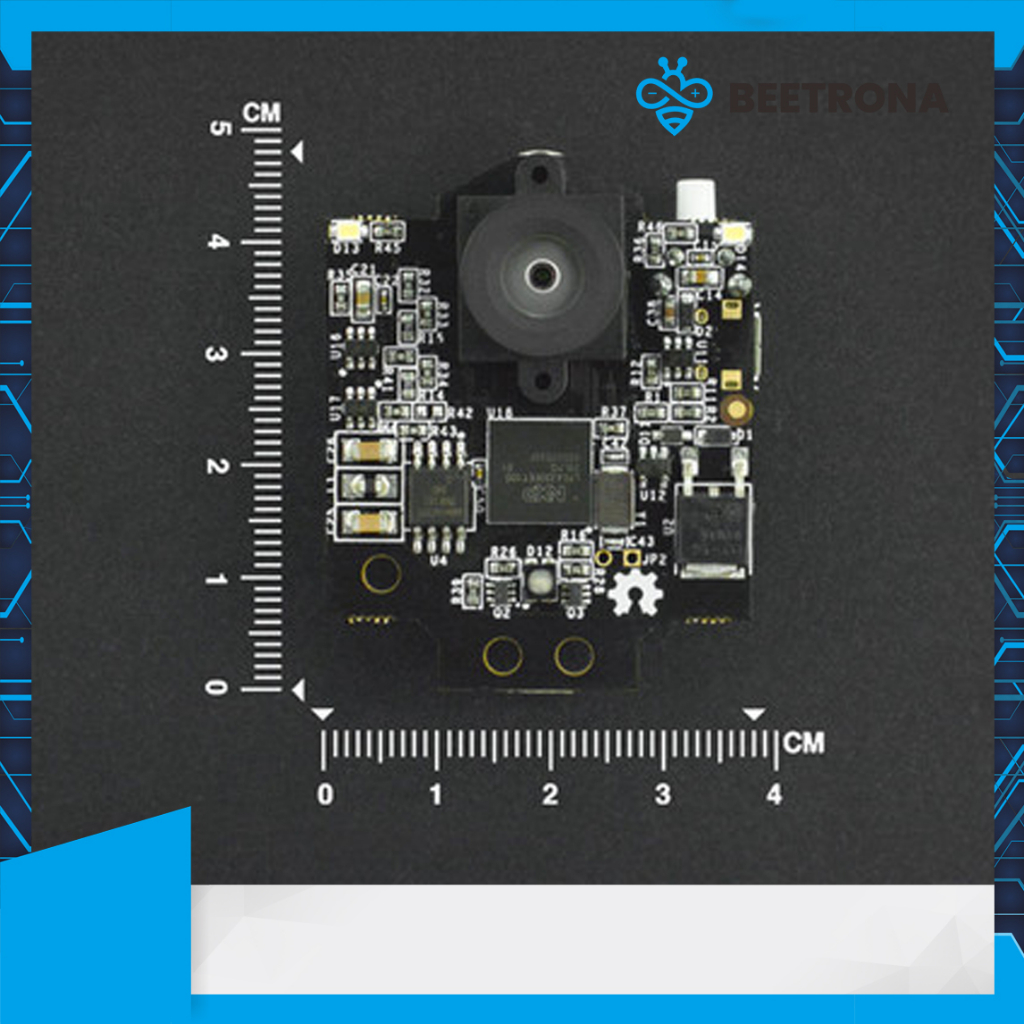

– Dimensions :1.5” x 1.65” x 0.6”
– Weight : 10 grams
– Integrated light source, approximately 20 lumens

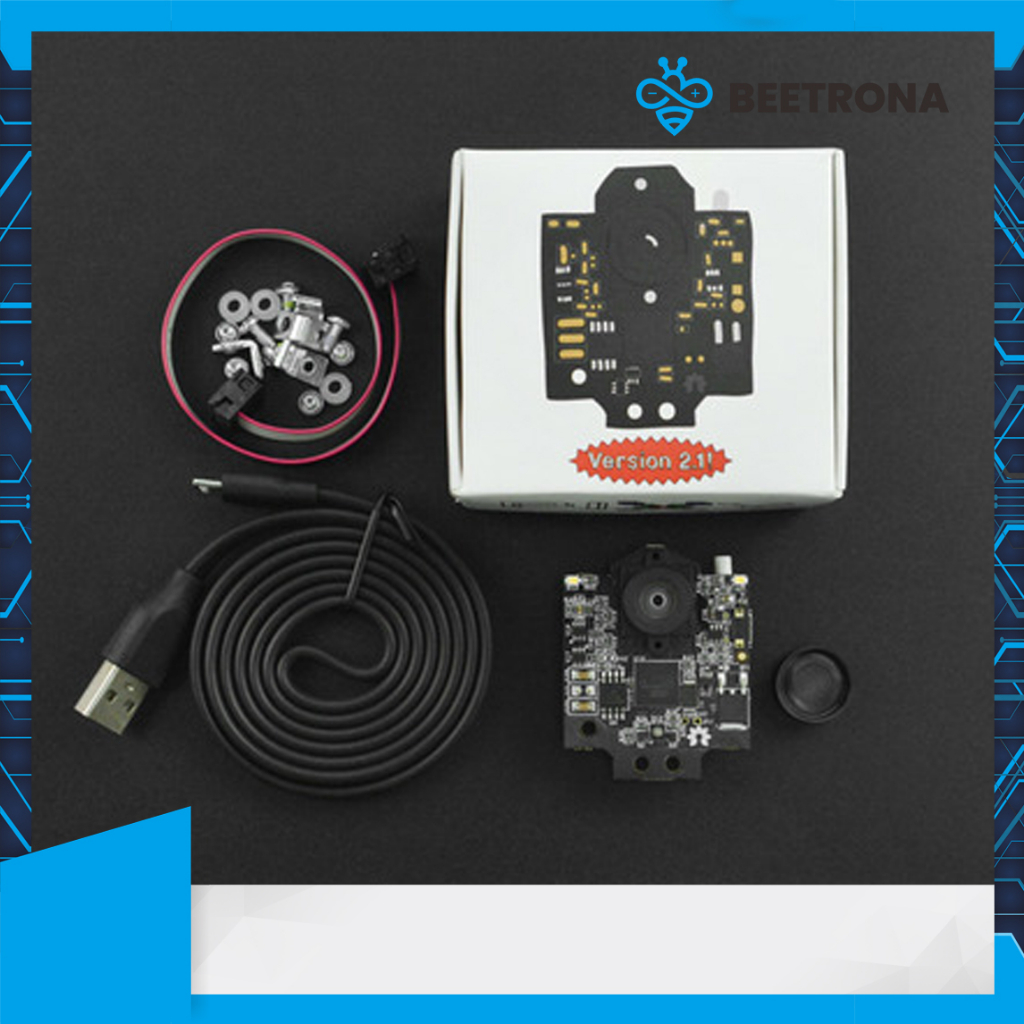

Package Include :

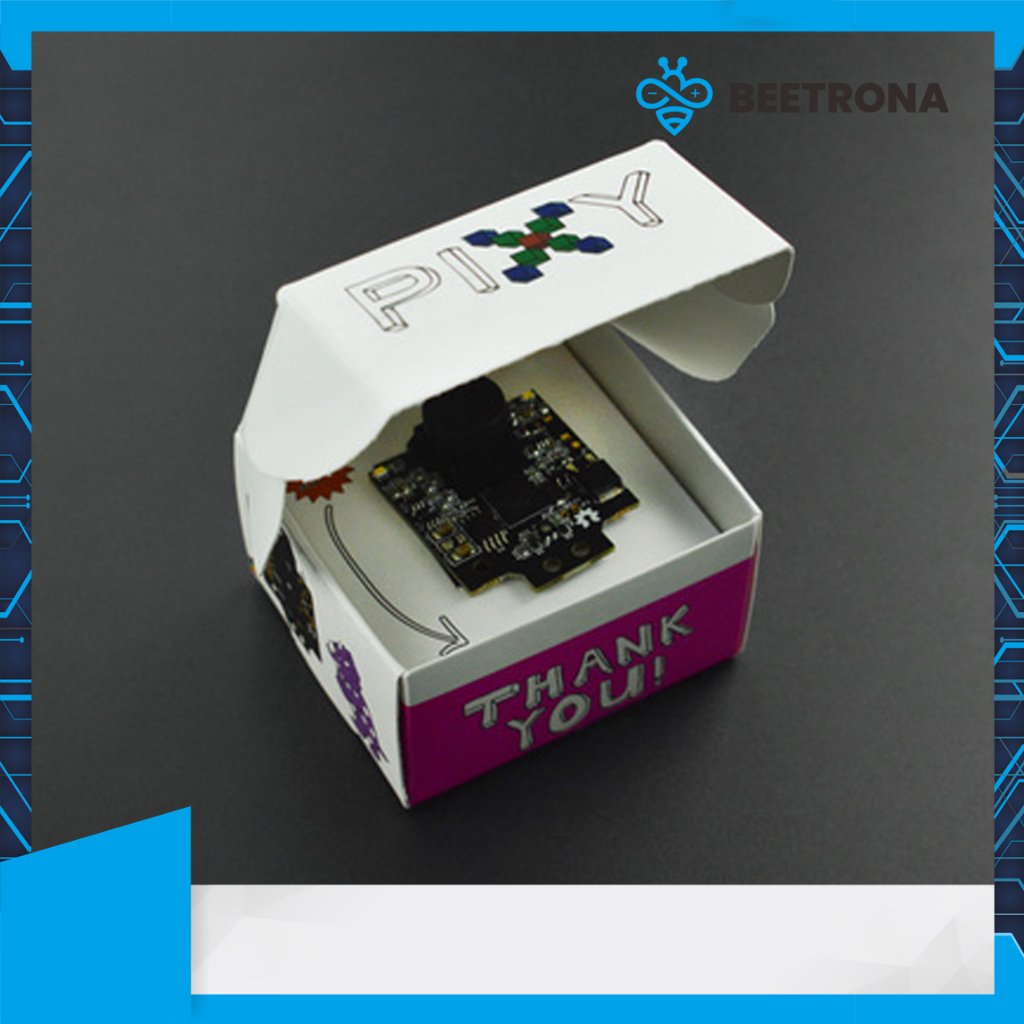

– Pixy 2 CMUcam5 Image Sensor x1
– FC-10P to FC-6P Cable x1
– Screw Package x1
Info produk lebih lanjut dapat dicek diwebsite DFRobot resmi
