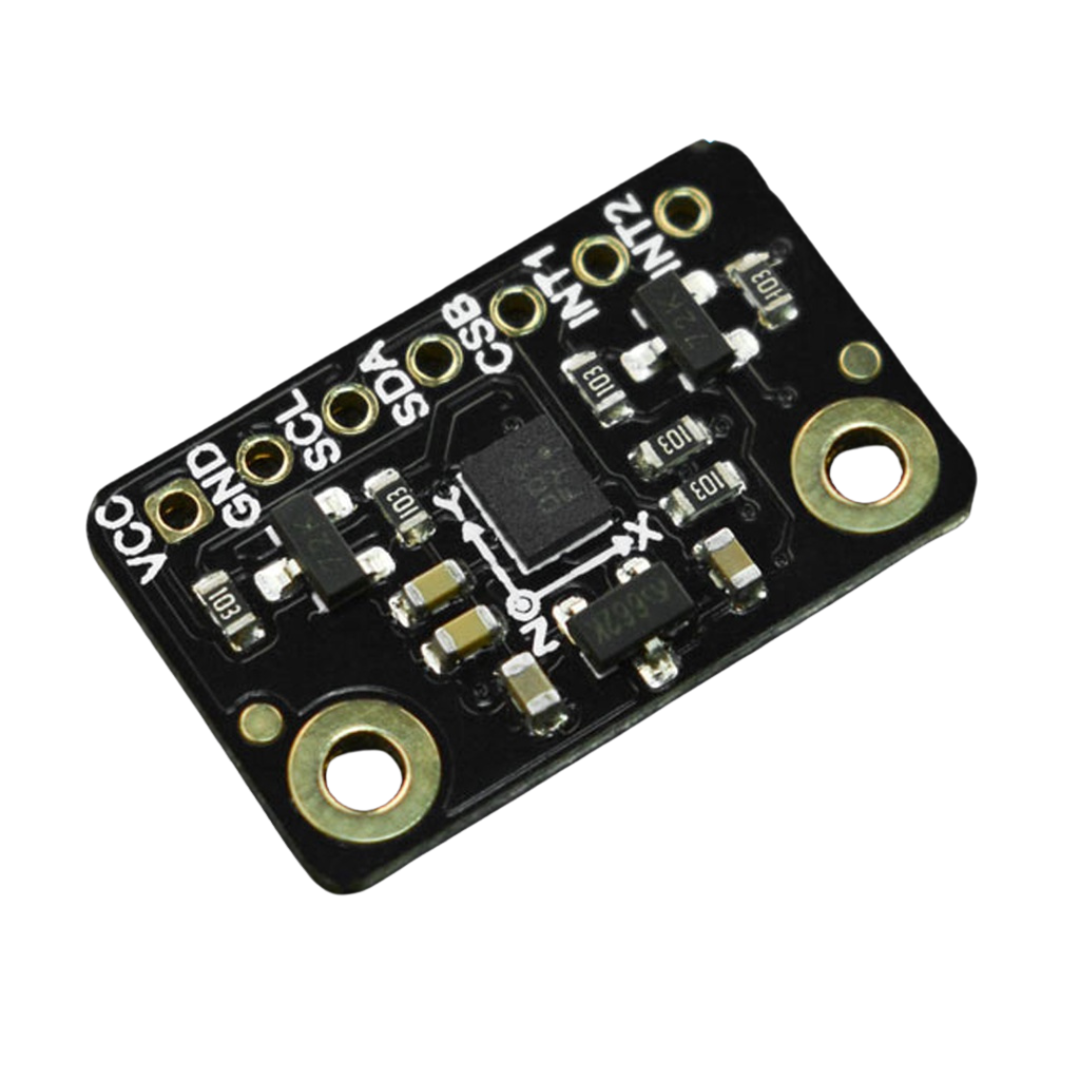

DFrobot Fermion BMX160 9 Axis Sensor Accelerometer Gyroscope

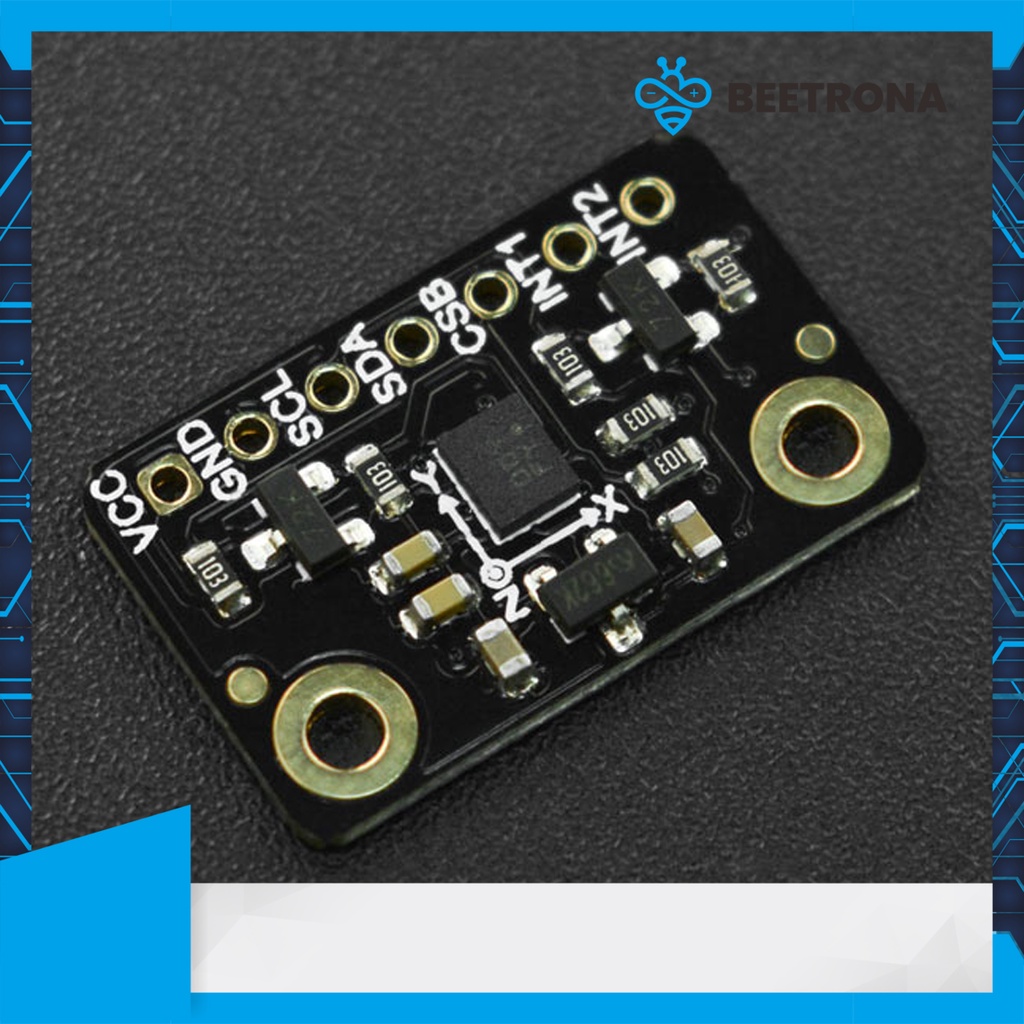

DFrobot Fermion BMX160 9 Axis Sensor Accelerometer Gyroscope 9 Axis Module

Specification

– Operating Voltage : 3.3V-5.5V
– Communication Interface : I2C(5V Compatible) Other ports only support 3.3V
– Default I2C Address : 0x68
– BMX160 Accelerometer :
Accelerometer: ±2g/±4g/±8g/±16
– BMX160 Gyroscope :
Range: ±125°/s ~ 2000°/s
– BMX160 Geomagnetic :
Range: ±1150uT(x-,y-axis);±2500uT(z-axis)
Resolution: ~0.3
– Outline Dimension : 20 x 12.5mm/0.79 x 0.49”
– Mounting Hole Position : 15mm
– Mounting Hole Size : inner diameter 2mm/outer diameter 3.7mm

Package Include
– BMX160 9-axis Sensor Module(V1.0) x1
– 2.54 Single Row 7PIN Connector x1

Untuk Spesifikasi dan Info lebih lanjut silahkan cek website DFRobot resmi
