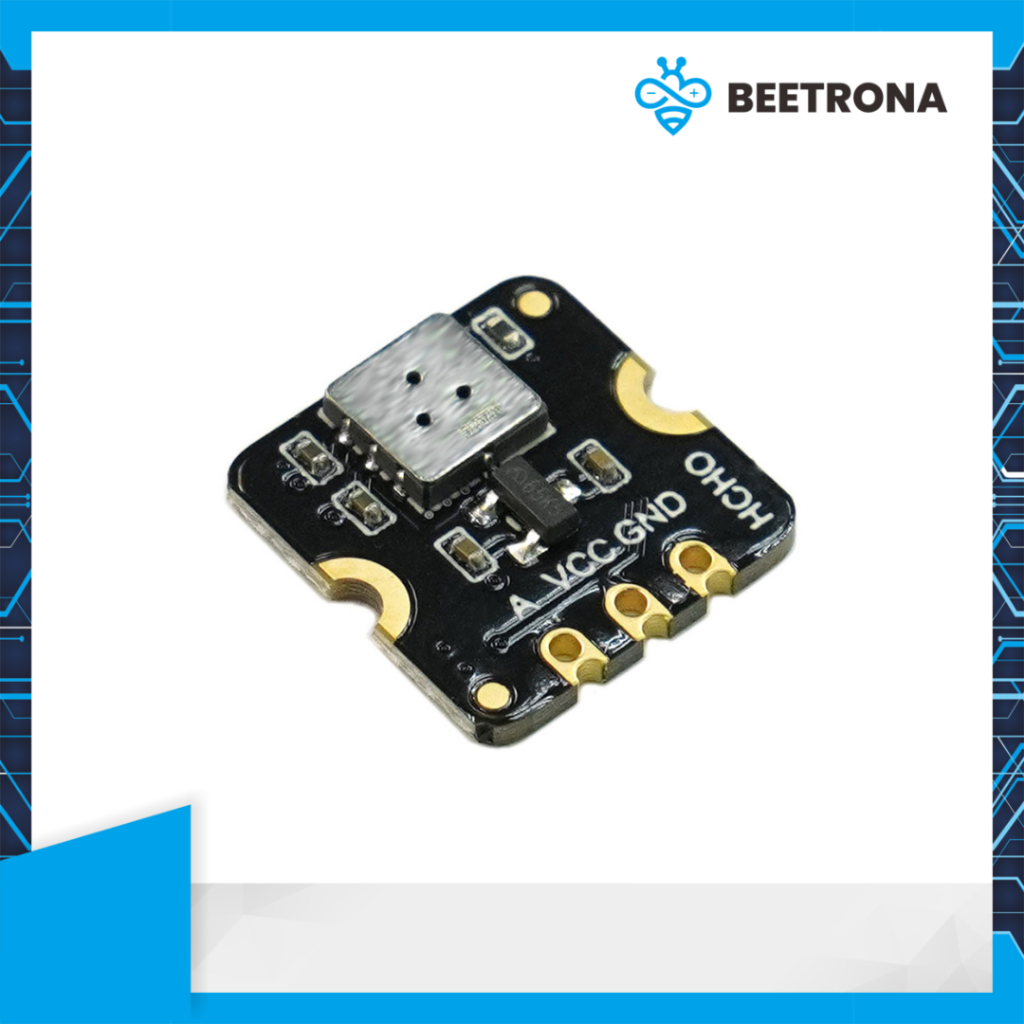

DFRobot Fermion Formaldehyde Sensor (Breakout, 0-3ppm MEMS HCHO Detection, Low Power)

DFRobot Fermion Formaldehyde MEMS HCHO Detection Sensor

Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut

Introduction
Ensure safe indoor air quality with the Fermion MEMS Formaldehyde Sensor (HCHO), a high-sensitivity detector for 0-3ppm gas concentrations. Perfect for HVAC systems, air purifiers, and portable monitors, this low-power sensor delivers fast, reliable results with MEMS technology.

Specification
– Gas detected: Formaldehyde (HCHO)
– Detection range: 0-3ppm
– Operating voltage: 3.3-5V
– Operating current: ＜20mA
– Output signal: Analog voltage
– Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
– Operating temperature: -10-50℃
– Operating humidity: 15-90%RH (non-condensing)
– Lifespan: ≥3 years (in air)
– Dimension：13×13 x 2.5mm/ 0.0.51×0.51×0.1″

Shipping List

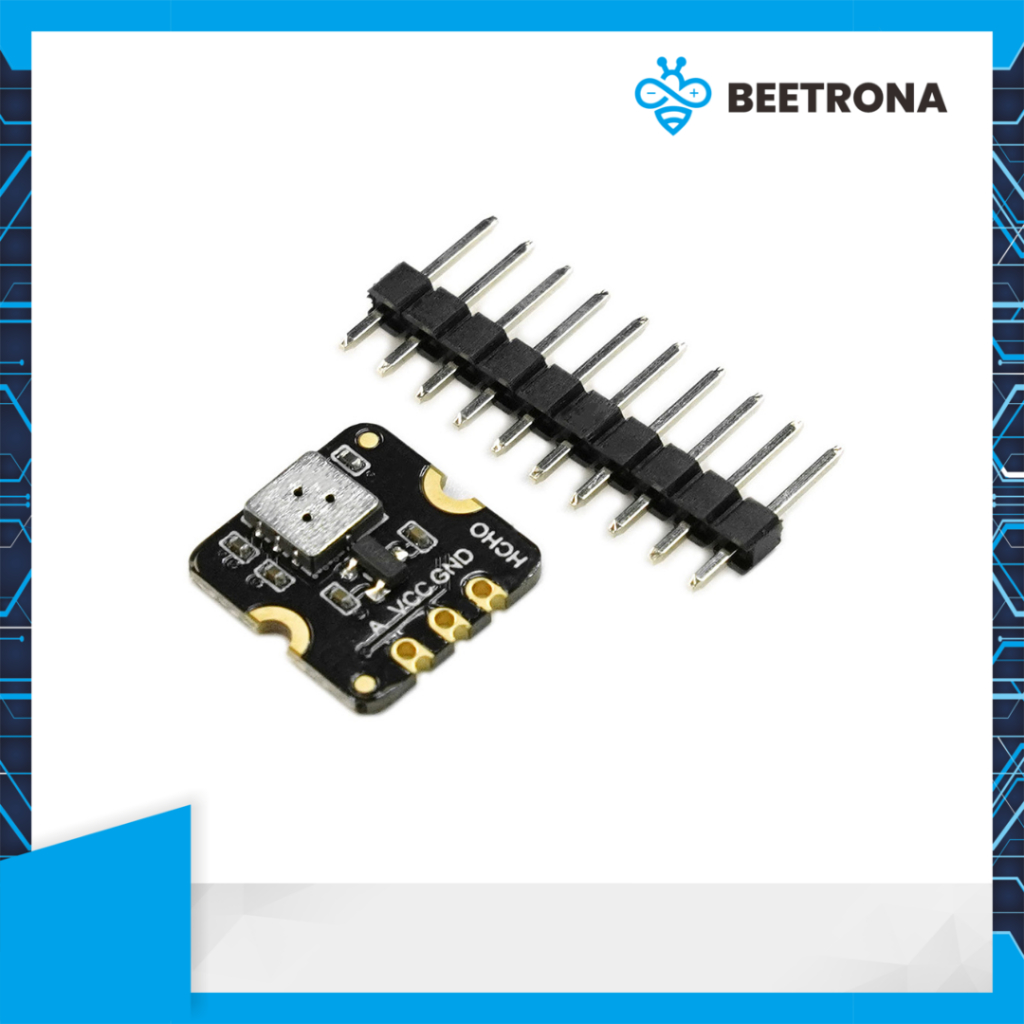

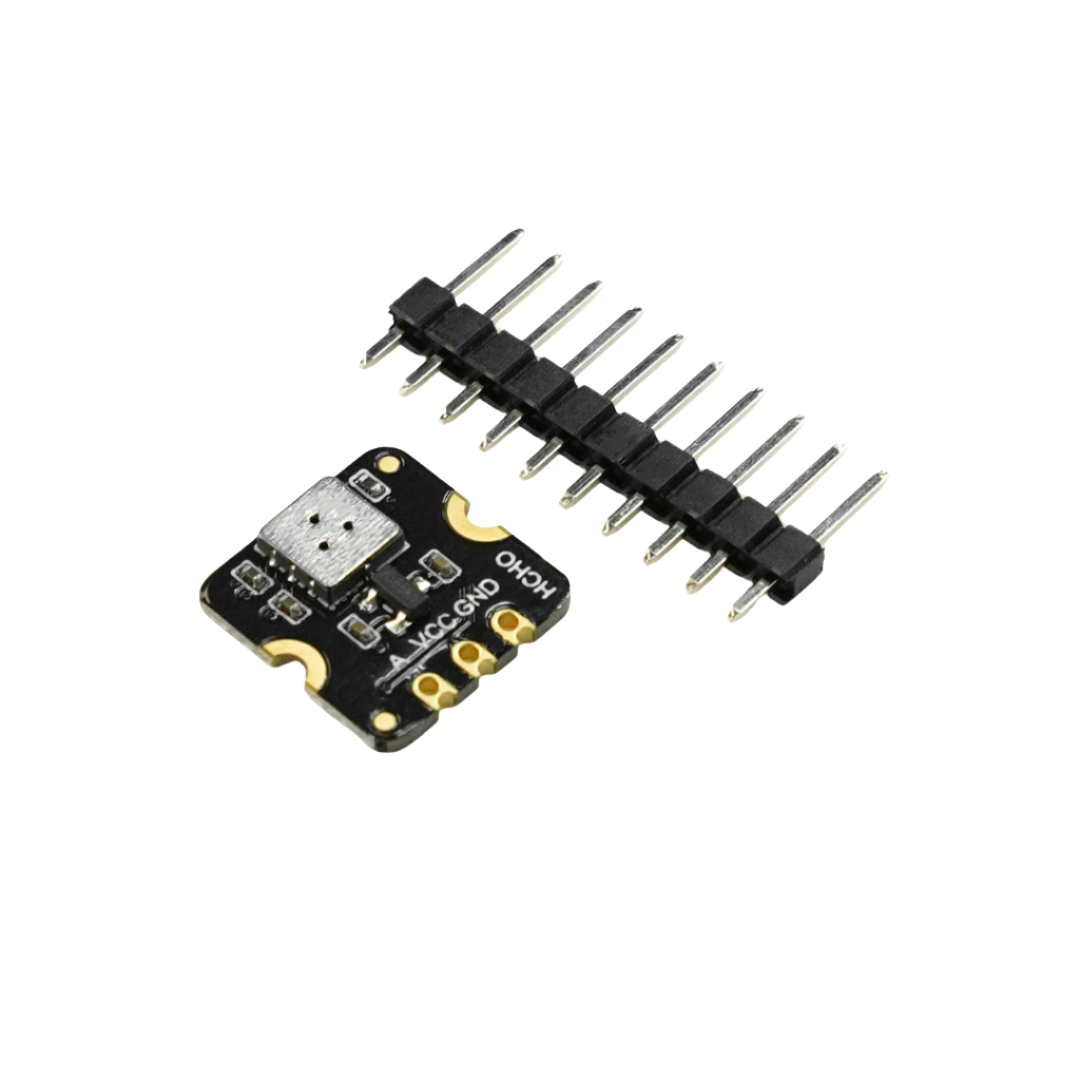

– Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor (breakout) × 1
– 2.54mm pitch header pin × 1

SEN0563
