is suitable for combustible gas leakage monitoring devices, gas leak detectors, fire/safety detection systems and other applications.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.
Specification
– Gas detected: CH4, C3H8, etc
– Detection range: 1-10000ppm (C3H8)
– Operating voltage: 5V
– Operating current: ＜20mA
– Output signal: Analog voltage
– Sensitivity: R0(in air)/Rs(in 5000ppm CH4) ≥ 2
– Operating temperature: -10-50℃
– Operating humidity: 15-90%RH (non-condensing)
– Lifespan: ≥5 years (in air)

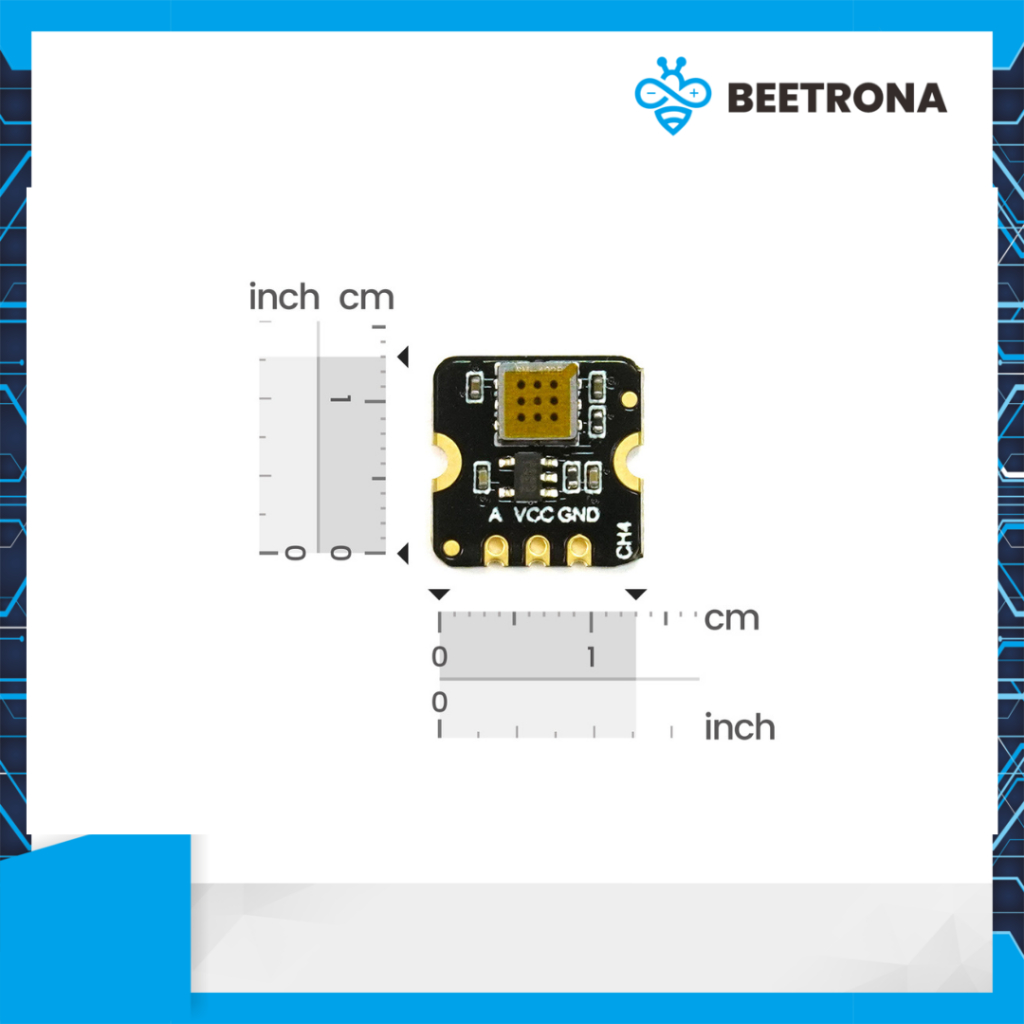

– Dimension：13×13 x 2.5mm/0.0.51×0.51×0.1″
Shipping List

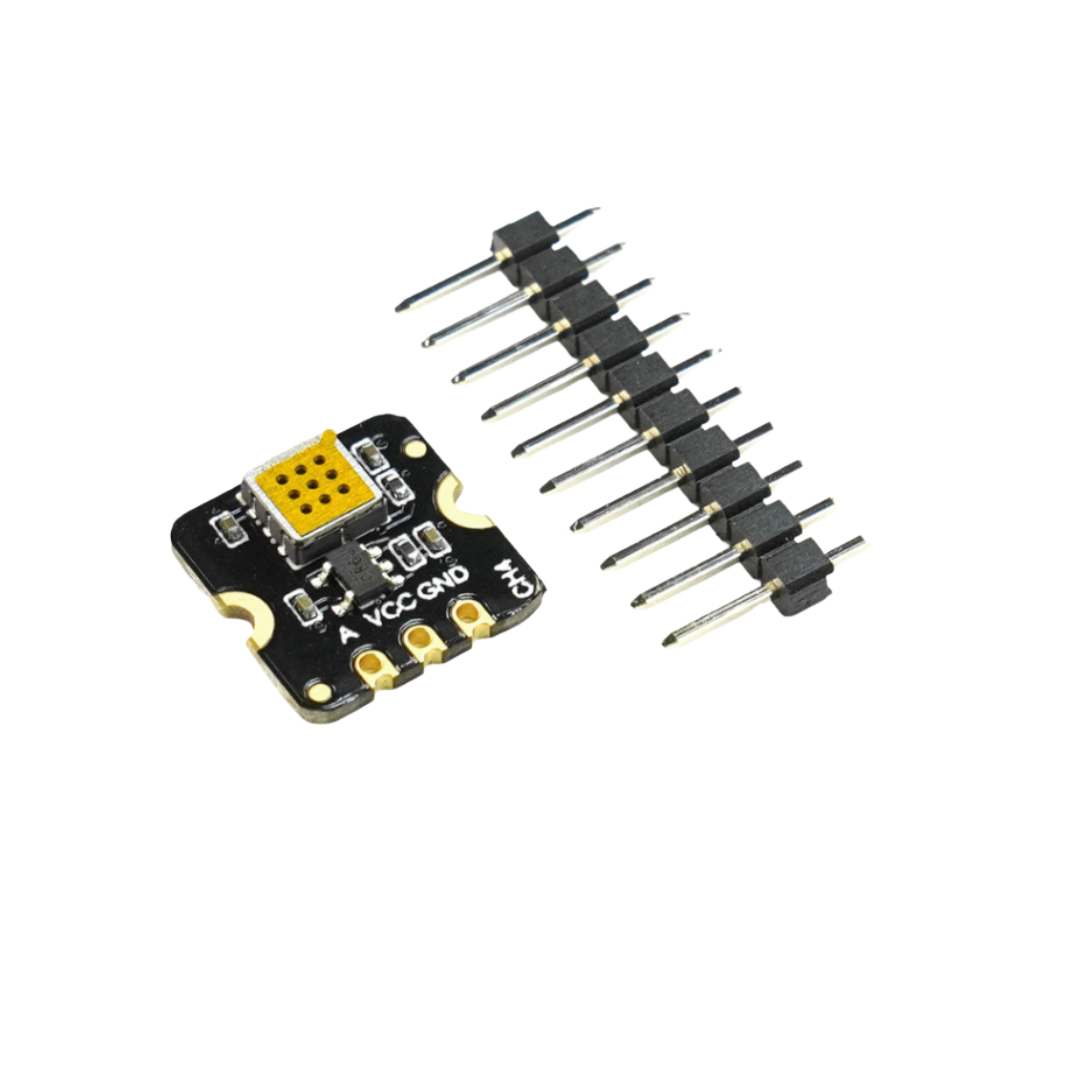

– Fermion: MEMS CH4 Sensor (breakout) × 1
– 2.54mm pitch header pin × 1
SEN0565
