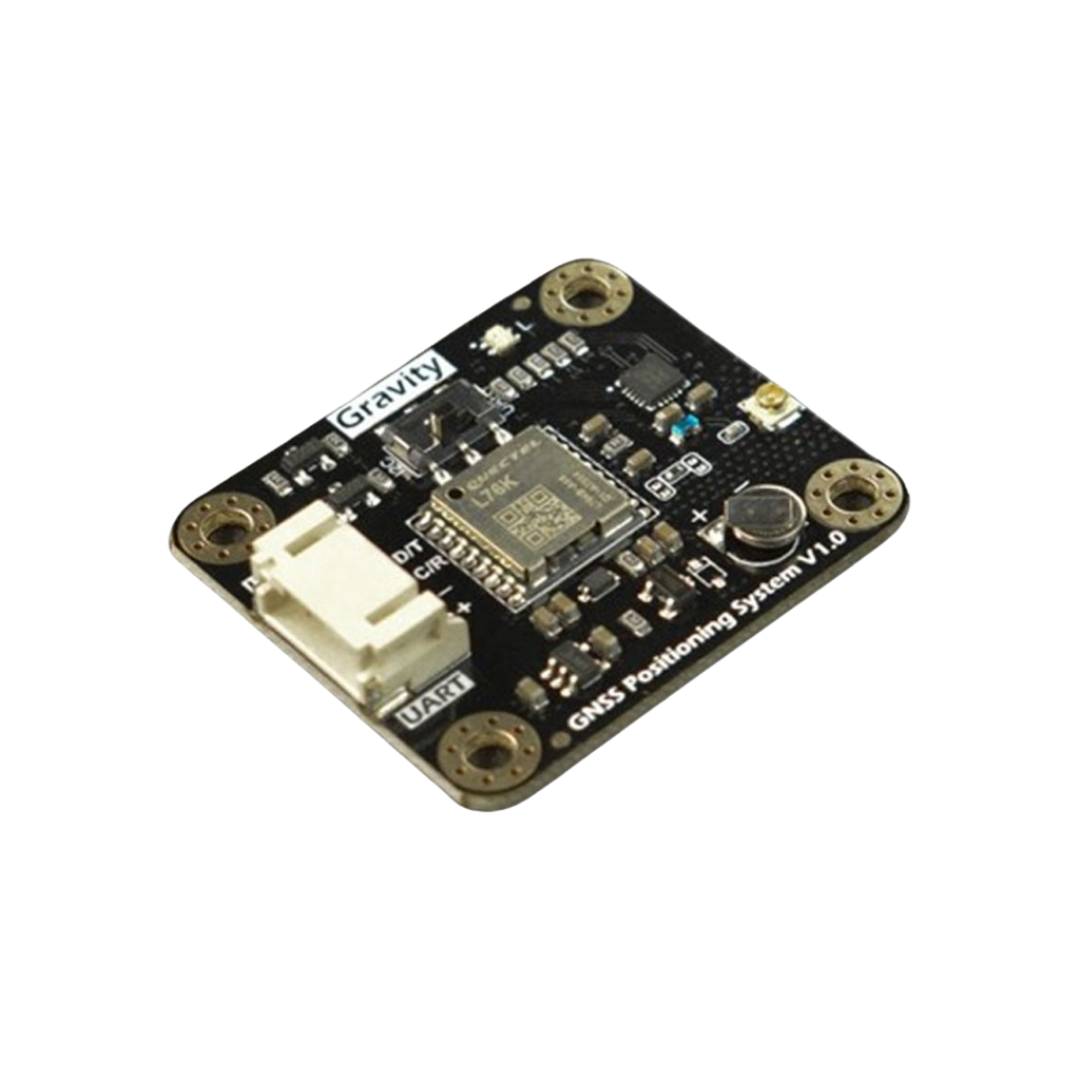

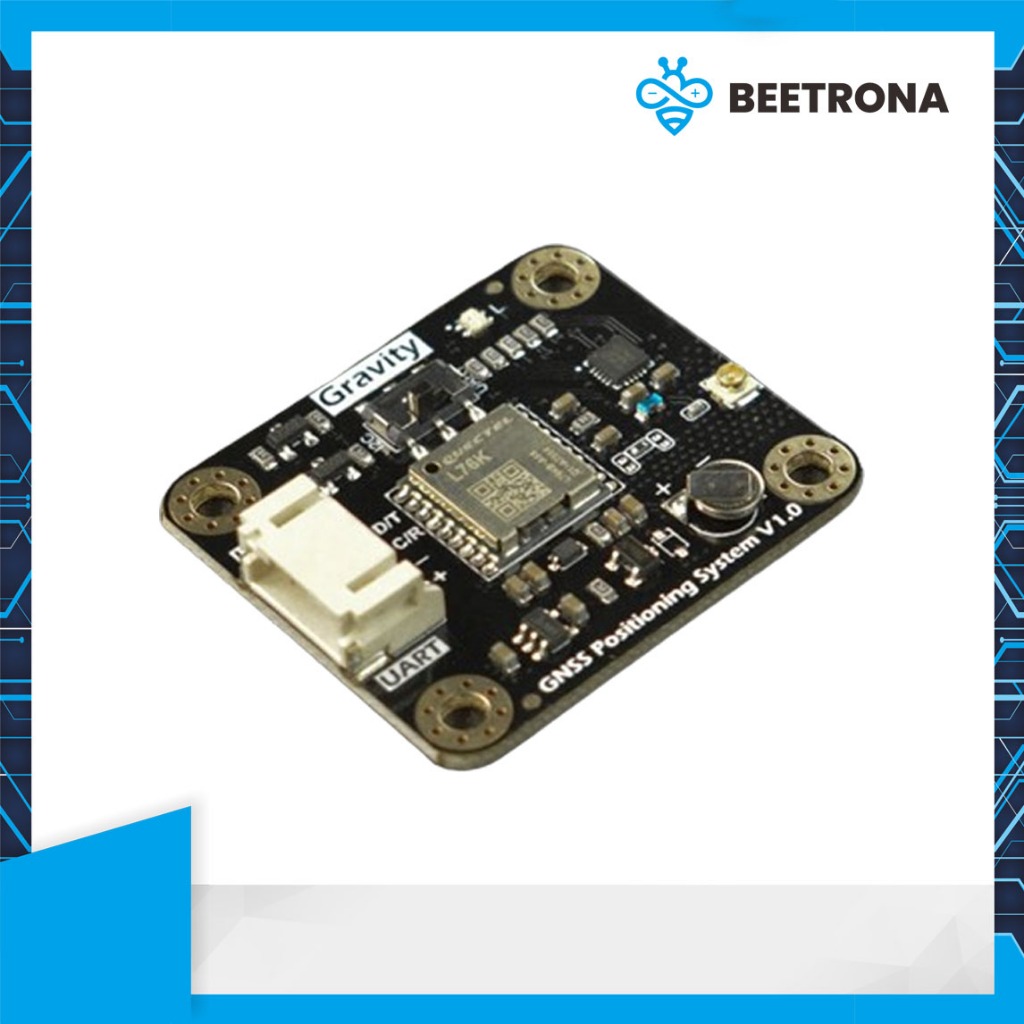

DFRobot Gravity GNSS GPS BeiDou Receiver Module – I2C&UART

DFRobot Gravity GNSS GPS BeiDou Receiver Module – I2C&UART

Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut.
Mohon tanya stock dulu sebelum membeli.

INTRODUCTION
What is GNSS?
GNSS stands for Global Navigation Satellite System. The main GNSS systems include GPS, GLONASS, QZSS, and BeiDou. These satellite systems transmit signals to the earth, allowing the receiver to determine its own position by calculating the propagation time of the signals and the position of the receiving satellite, thus achieving functions such as positioning and navigation.

SPECIFICATION
• Operating Voltage: 3.3 to 5.5V DC
• Output Signal: I2C/UART
• Positioning Accuracy: 2.0m CEP
• Time for First Positioning: 30s for cold start; 2s for hot start
• Power Consumption: 40mA
• Antenna Interface: IPEX1
• Antenna Frequency: 1561-1575.42MHz±3MHz
• Dimension: 27mm*37mm/1.06*1.46″

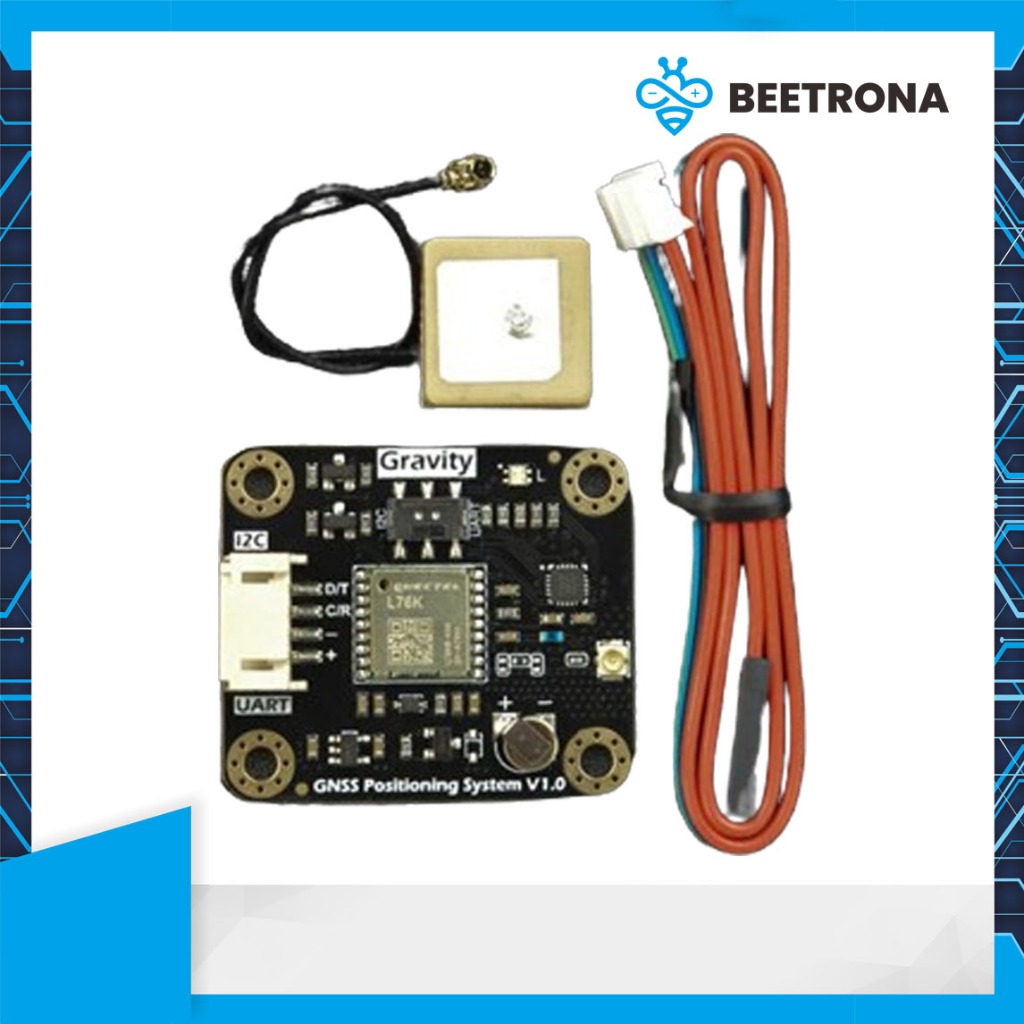

Package Include
• Gravity: GNSS Positioning Module × 1
• GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector) × 1
• Gravity 4P Sensor Cable × 1

Untuk Info lebih lanjut silahkan cek wiki dfrobot
https://www.dfrobot.com/product-2651.html
