Specification
– Operating voltage: 3.0~ 5.5V
– ±0.5°C Accuracy from -10°C to +85°C
– Usable temperature range: -55 to 125°C (-67°F to +257°F)
– 9 to 12 bit selectable resolution
– Uses 1-Wire interface- requires only one digital pin for communication
– Unique 64 bit ID burned into chip
– Multiple sensors can share one pin
– Temperature-limit alarm system
– Query time is less than 750ms
– 3 wires interface:
Type A
-Red wire – VCC
-Black wire – GND
-Yellow wire – DATA
Type B
-Red wire – VCC
-Yellow wire – GND
-Green wire – DATA
– Stainless steel tube 6mm diameter by 35mm(1.34″) long
– Cable diameter: 4mm(0.16″)
– Length: 90cm(35.43″)

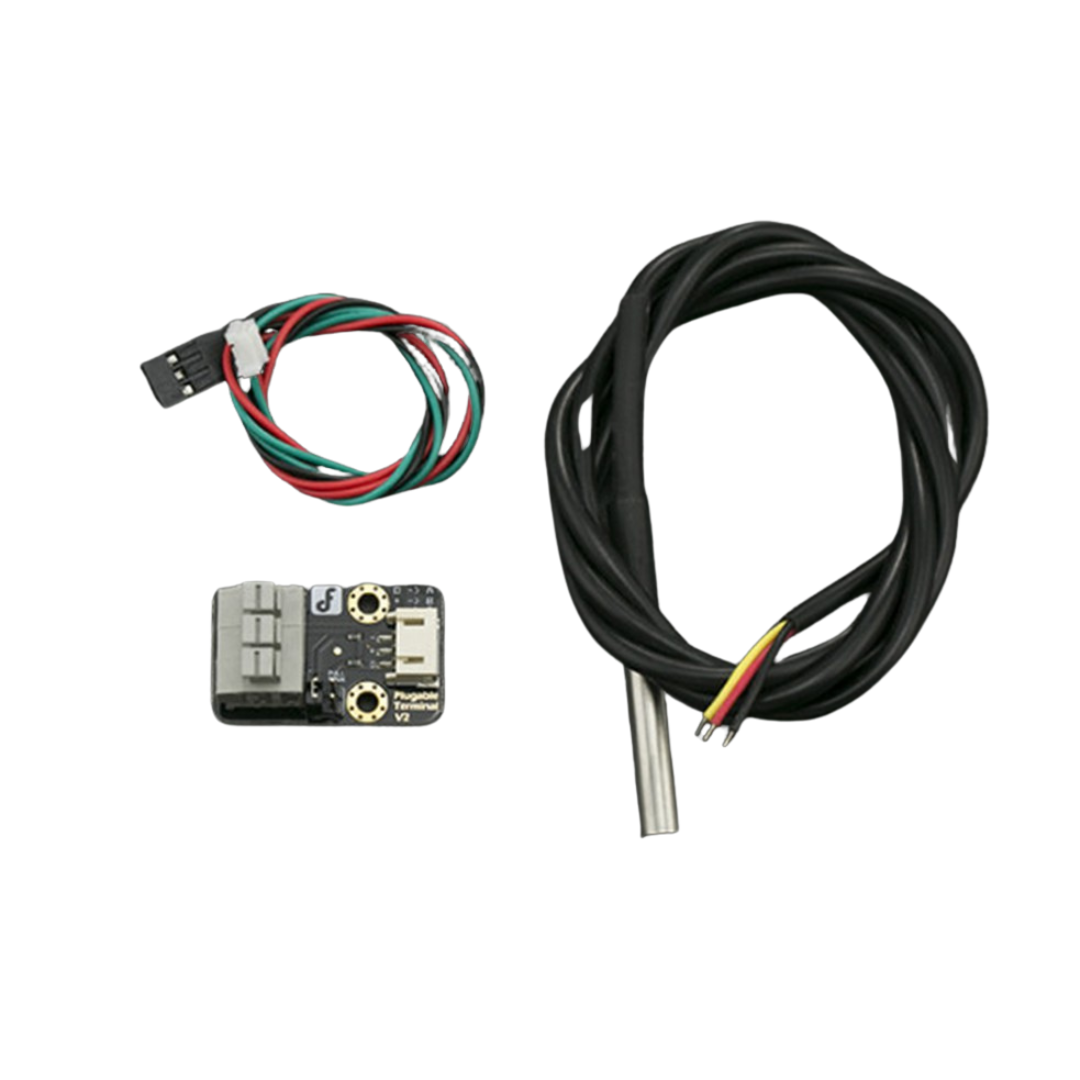

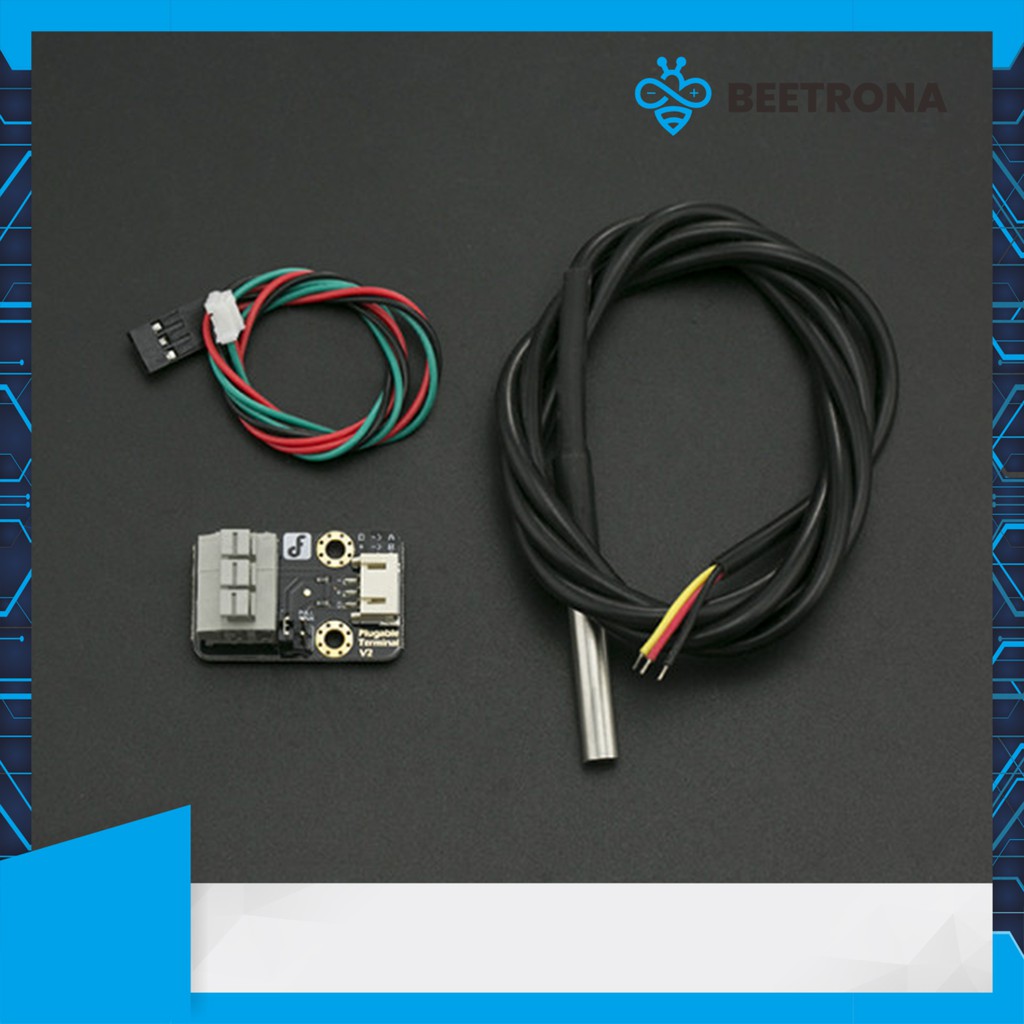

Package Include :
– Waterproof DS18B20 Digital temperature sensor x1pcs

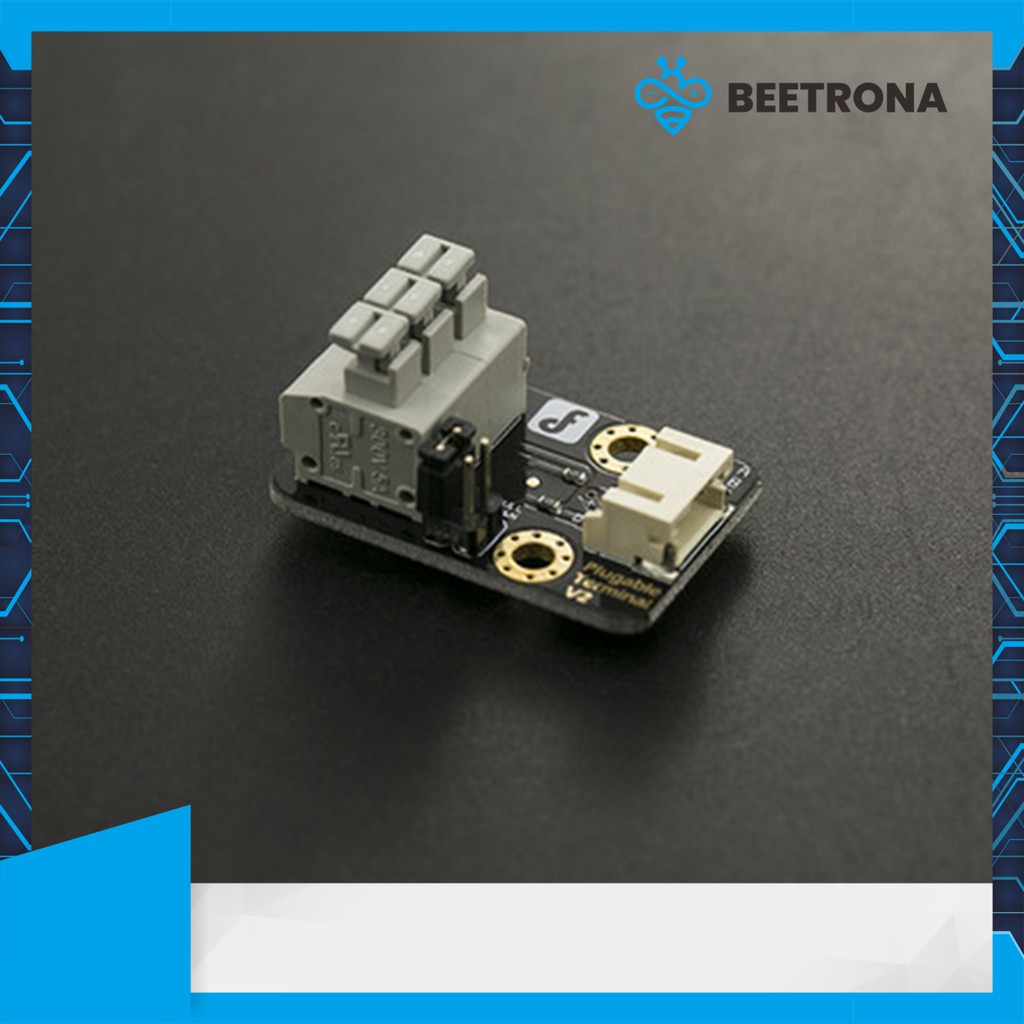

– Terminal sensor adapter x1pcs
– Digital sensor cable x1pcs
Spesifikasi Lengkap bisa dicek di website DFRobot langsung
