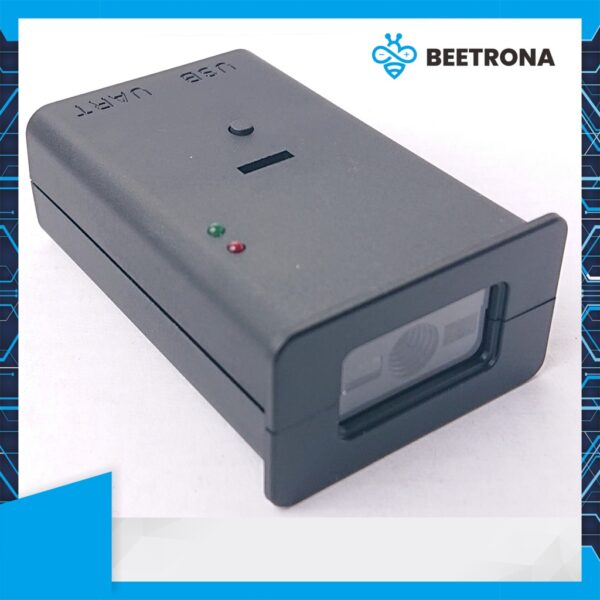

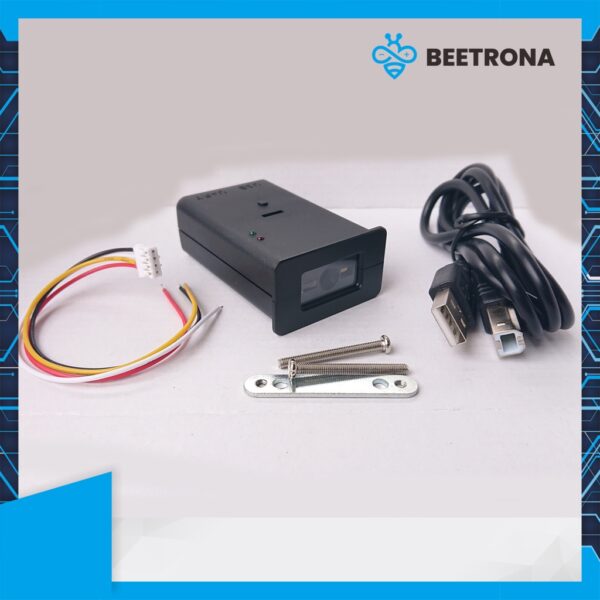

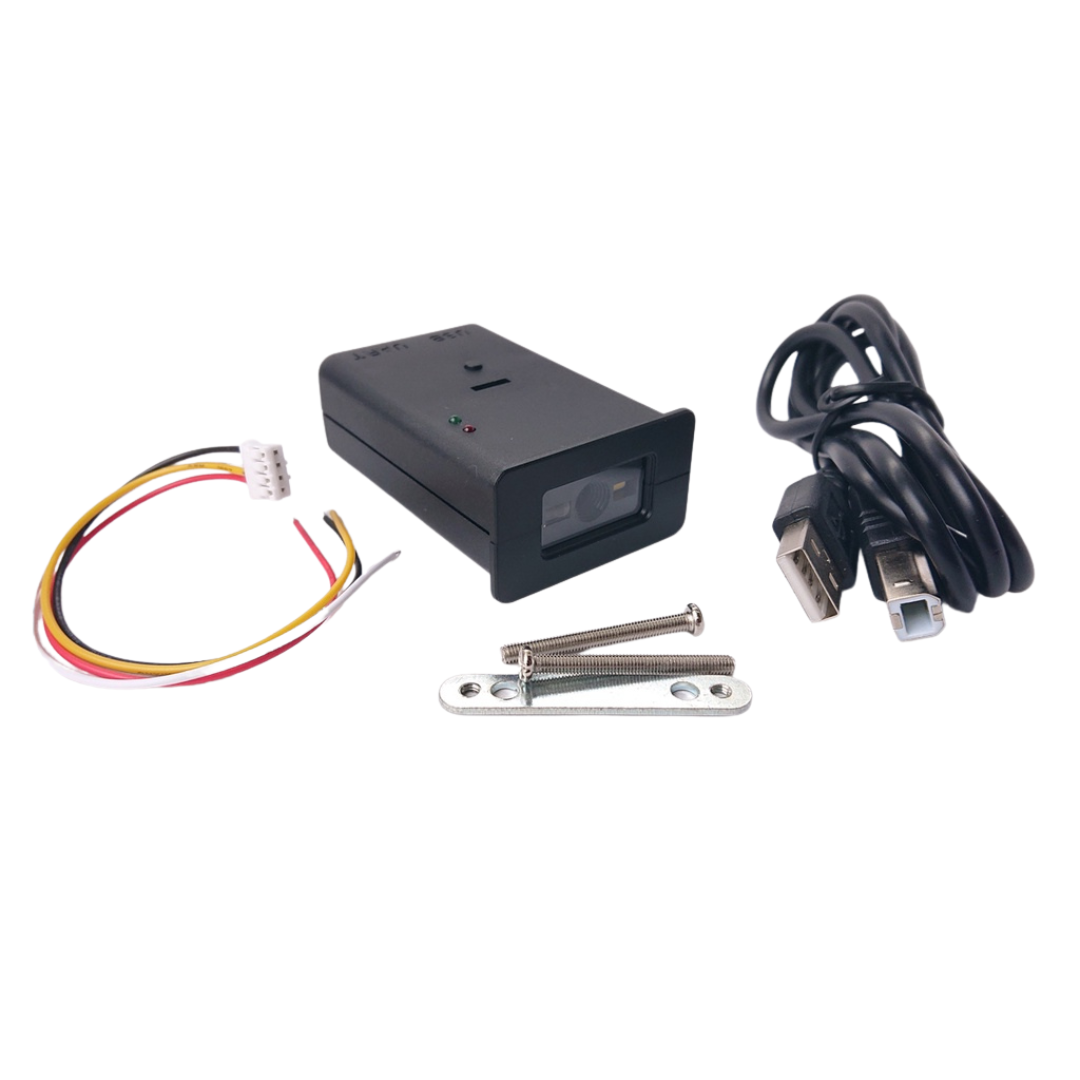

GM66 Barcode QR Scanner QRCode Sensor Module Arduino Compactible
GM66 Modul Scan QR Code dan Barcode bisa untuk arduino
Specification :
a. Decoding Ability
– 1D : EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128, EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect
– 2D : PDF417,QR Code ,Data Matrix ect

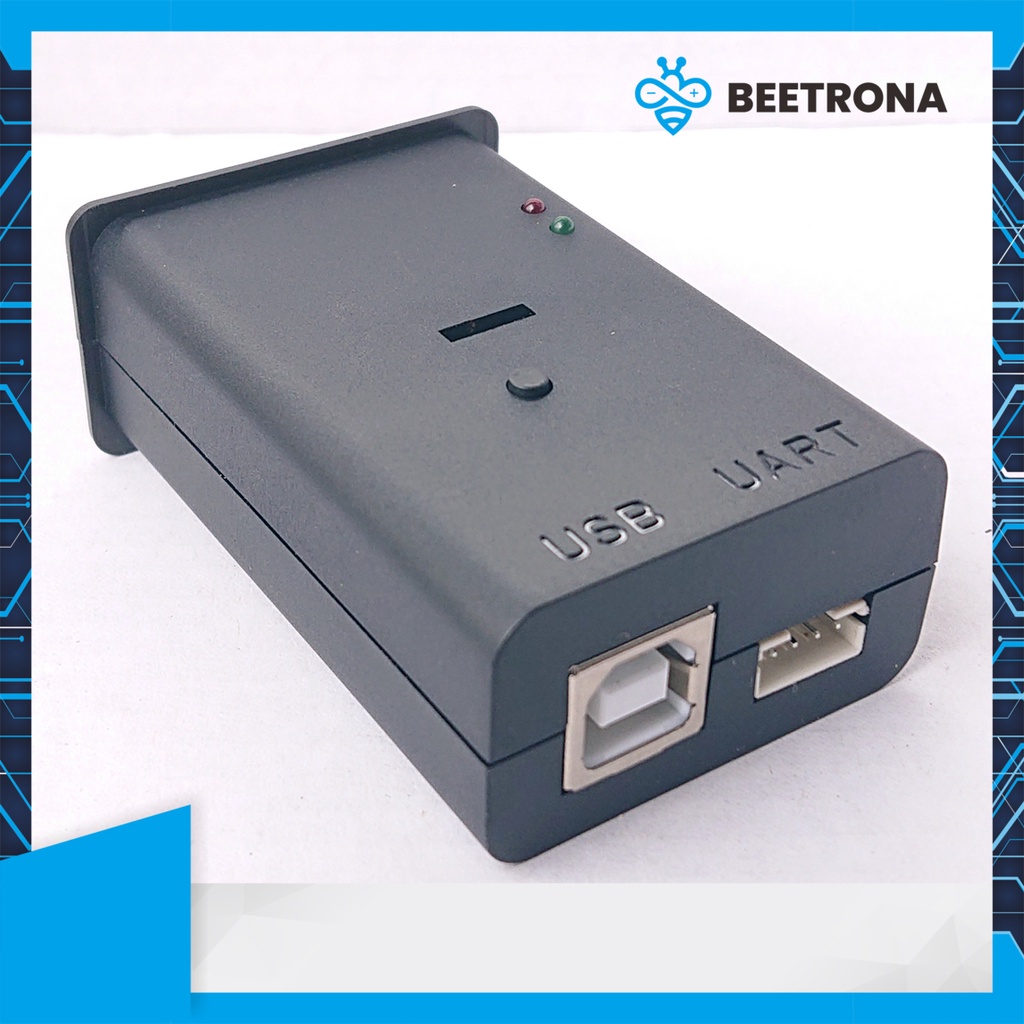

b. Interface : USB2.0 \ UART
c. Resolution : 0.10mm (4mil)
d. Operating Voltage : 5VDC
e. Operating Current : 120mA
f. Weight : 31g
g. Size : 62.3*42.5*24.5mm
h. Type of Illuminant : 617nm LED(Aimer), 6500K LEDs(Illumination)
i. LED Indicator : Buzzer and bi-color light: Red-power, Blue-decoding Successfully
j. Scan Angle : Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater
k. Scanning angle Inclination angle : 34°, Elevation angle 26°
l. Print Contrast : 30% minimum reflective difference
m. Reading Distance : 25 – 250mm
n. Operating Temperature : -20 degrees to 55 degrees
o. Storage Temperature : -40 degrees to 65 degrees
p. Temperature Humidity : 5% to 95% Relative humidity, Non-condensing
q. Light Levels : 0-85000LUX
