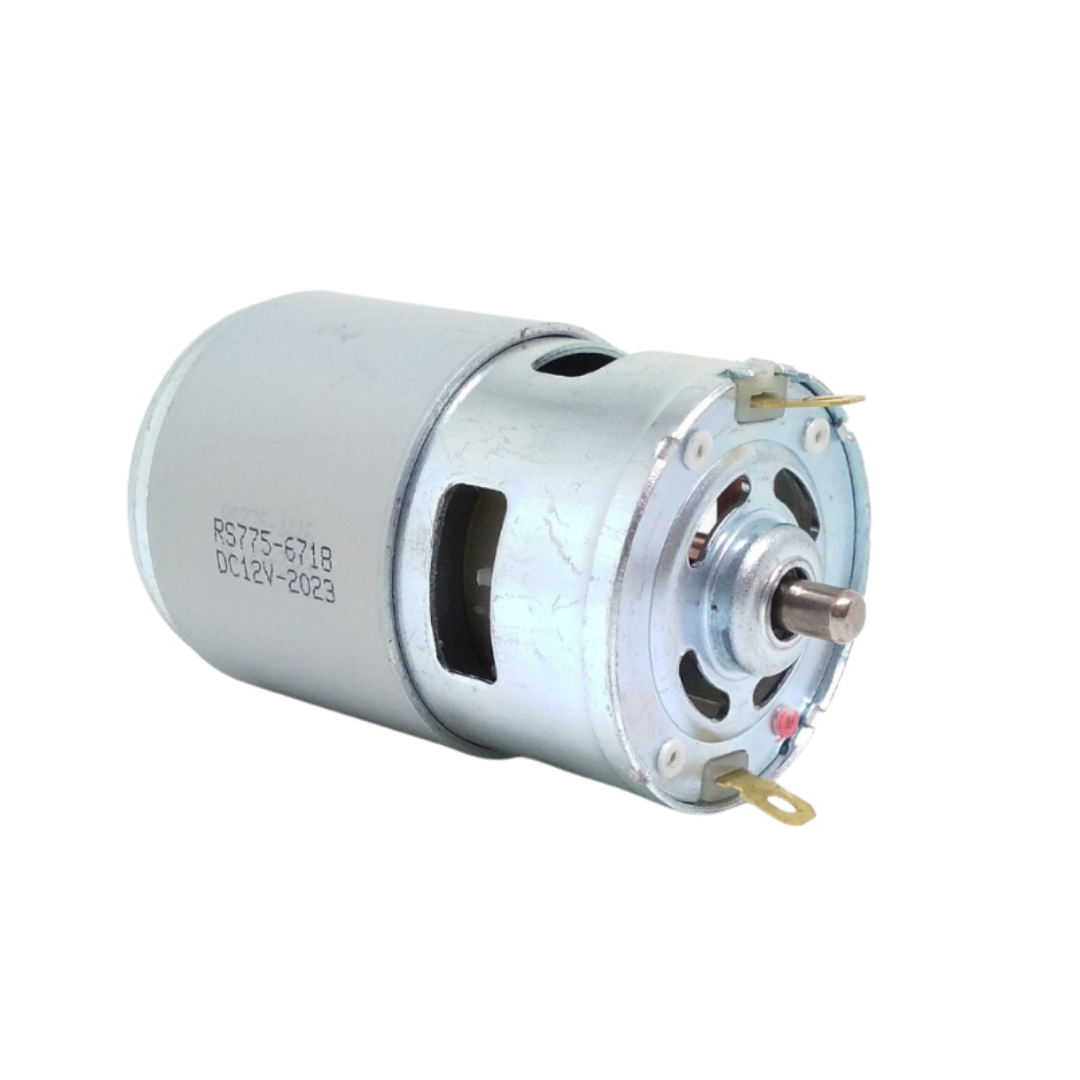

Motor 775 12-24VDC 4500rpm Round Shaft

Motor 775 12-24VDC 4500rpm Round Shaft

Specification :
– Voltage range : 12-24V
– Stall current : 3.25A
– No-load current : 0.27A
– No-load speed : 4500 rpm
– Motor Body Diameter : 42mm
– Motor Body Length : 66.5mm
– Motor step diameter: 17.5mm
– Motor step height: 4.5mm
– Output shaft length: 16mm (axis length above the step level)
– Shaft diameter: 5mm shaft
