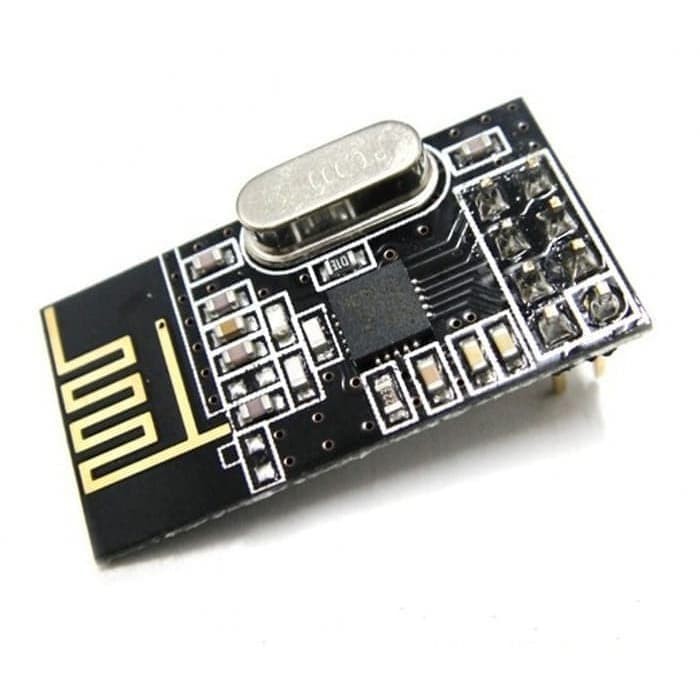

NRF24L01 2.4G Wireless Transceiver Communication Modul Komunikasi

NRF24L01 2.4G Wireless Transceiver Communication Modul Komunikasi
Features:

nRF24L01+ RF transceiver from Nordic Semiconductor
3.3V powered, DONOT power it with 5.0V.
250kbps to 2Mbit Data Rate
Auto Acknowledge
Auto Re-Transmit
Multiceiver – 6 Data Pipes
32 Byte separate TX and RX FIFOs
5V tolerant input pins
Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
Minimum number of external components
Pins broken out : VCC, CE, CSN, SCK, MOSI, MISO, IRQ, GND
Lots of application notes and support on Nordic Semiconductor Website
Packing List:

1 x nRF24L01+ module

Ini adalah modul 3.3V, VCC harus ditenagai dengan 3.3VDC. Memasok 5V ke VCC akan membakar modul. Namun, pin komunikasi kompatibel 5V.
