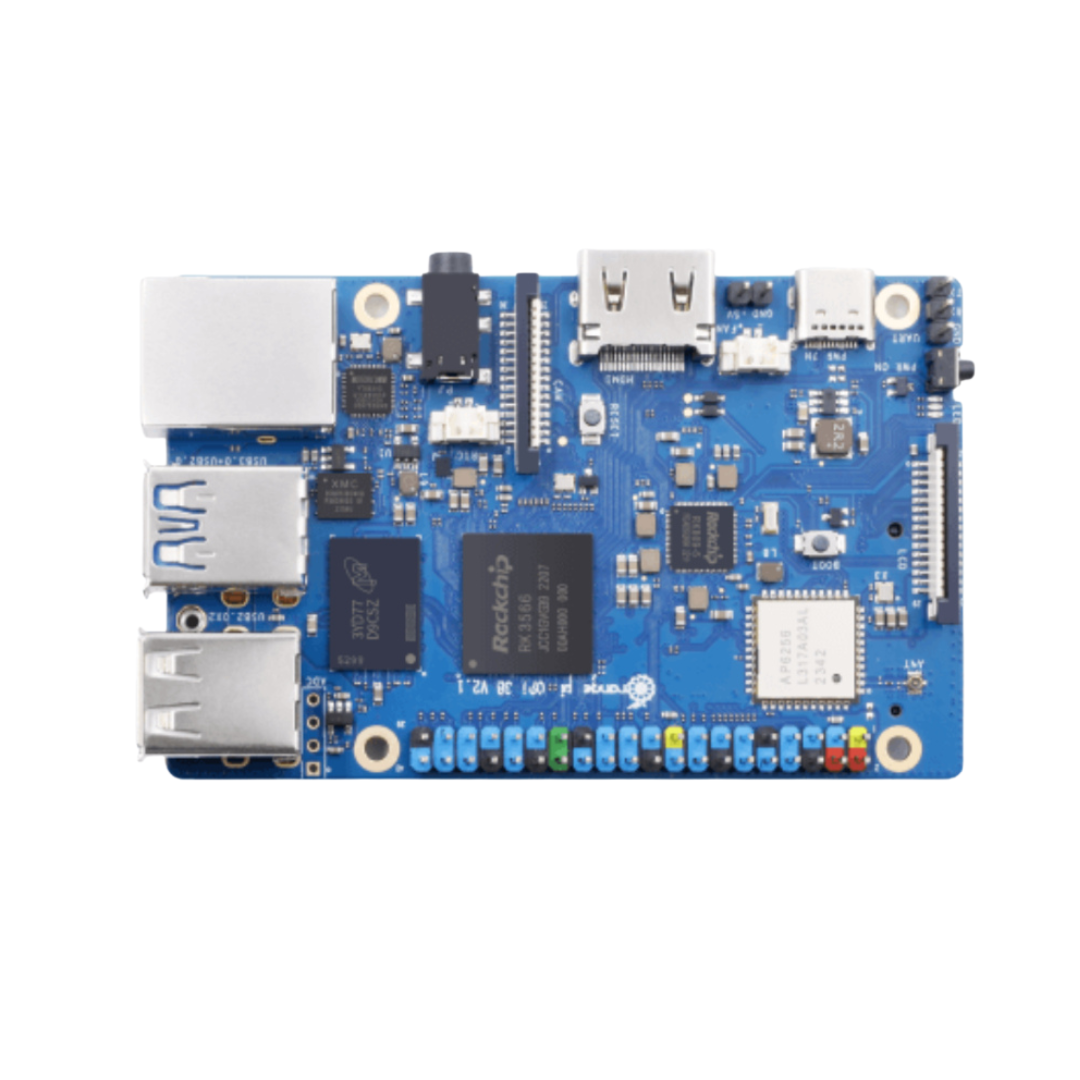

Orange Pi 3B RAM 2GB RK3566

Orange Pi 3B RAM 2GB RK3566

Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut

Specification :
SoC : RockchipRK3566
CPU : Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU :
• ARM Mali G52 2EE graphics processor
• Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Embedded high performance 2D acceleration hardware
NPU :
• Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
• Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU :
• 4K@60fps H.265/H.264/VP9 video decoding
• 1080P@100fps H.265 video encoding
• 1080P@60fps H.264 video encoding
PMU : RockChip RK809-5
RAM : 2GB（LPDDR4/4x）
Memory :
• Support eMMC module:16GB/32GB/64GB/128GB/256GB (Already Instaled 16Gb emmc)
• SPI Flash: 16MB/32MB
• M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs
• Micro SD slot
Wi-Fi+BT : Wi-Fi 5+BT 5.0，BLE（AP6256）
Ethernet : 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA )
Video Output :
· 1* HDMI TX 2.0 , up to 4K@60fps
· 1*MIPI DSI 2 lane
· eDP1.3
Camera : 1*MIPI CSI 2 lane camera interface
USB :
• 1*USB 2.0 support Device or HOST mode
• 1*USB 3.0 HOST
• 2*USB 2.0 HOST
Audio : 3.5mm headphone jack audio in/out
Button : 1* MaskROM key, 1* RESET key, 1 *POWER key
FAN : 2Pin 1.25mm size 5V fan connector
RTC : 2Pin 1.25mm size battery backup connector
40Pin : 40Pin functional expansion interface, supporting the following interface types:
GPIO, UART, I2C, SPI, PWM
Power Source : Type-C 5V3A
Supported OS : Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Dimension : 56*89mm
