Specification :

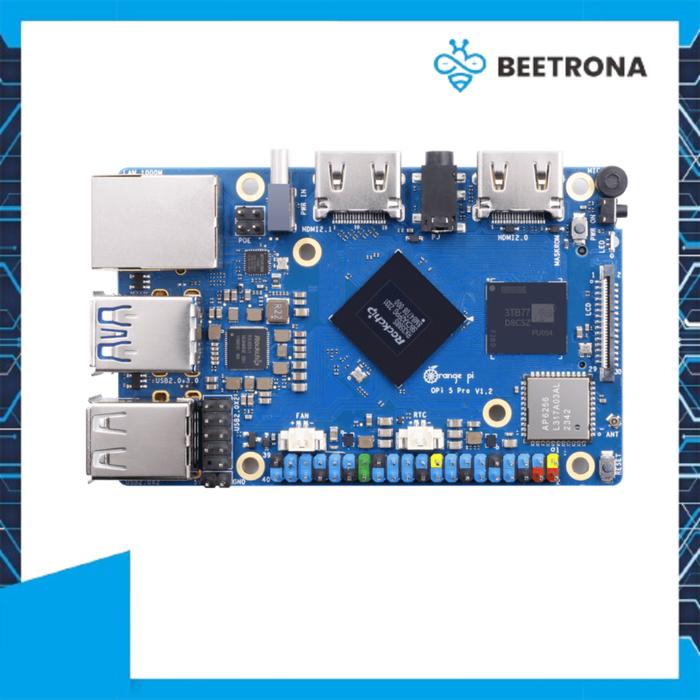

SOC : Master Chip : Rockchip RK3588S (8nm LP process)
CPU :
• 8-core 64-bit processor
• big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and little core cluster is 1.8GHz frequency.
GPU :
• Arm Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU : RK806-1
RAM : LPDDR5 496PIN：4GB
Memory :
• eMMC socket: supports eMMC module (optional)
• SPI Flash (default empty) Note:either eMMC socket or on-board SPI Flash is preferred.
• MicroSD (TF) slot
• M.2 M-KEY slot: NVMe SSD or SATA SSD
USB :
• USB3.1 Gen1 * 1;USB2.0 *1；
• USB HUB:USB2.0 *2（TYPE A）+UAB2.0*2 row of pins
Video Output :
• HDMI2.1 up to 8K @60Hz
• HDMI2.0, up to 4K @60Hz
• MIPI DSI 4 Lane, up to 4K @60Hz
Camera : 2*MIPI 4 Lane
Audio :
• CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: onboard MIC
• HDMI 2.1 eARC
Ethernet : 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module : Onboard Wi-Fi5+BT 5.0/BLE module: AP6256
PCIe M.2 M-KEY Socket : M.2 M-Key slot supports access to NVMe SSD or SATA SSD
Expansion Port :
• Dual-row pin: 2.54mm 40Pin
• Supports DC 5V and 3.3V power outputs
• Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button : 1* MaskROM, 1*RESET, 1 * POWER
Power Source : Supports Type-C power supply, 5V @ 5A
LED : RGB LED tri-color indicator
FAN : 5V 2PIN 1.25mm socket
RTC : 3V 2PIN 1.25mm socket
Debugging : Debug serial port UART included in 40PIN expansion port
Supported OS : Orangepi OS（Droid),Orangepi OS（Arch),Ubuntu,Debian,Android12
Dimension : 89mm*56mm*1.6mm
