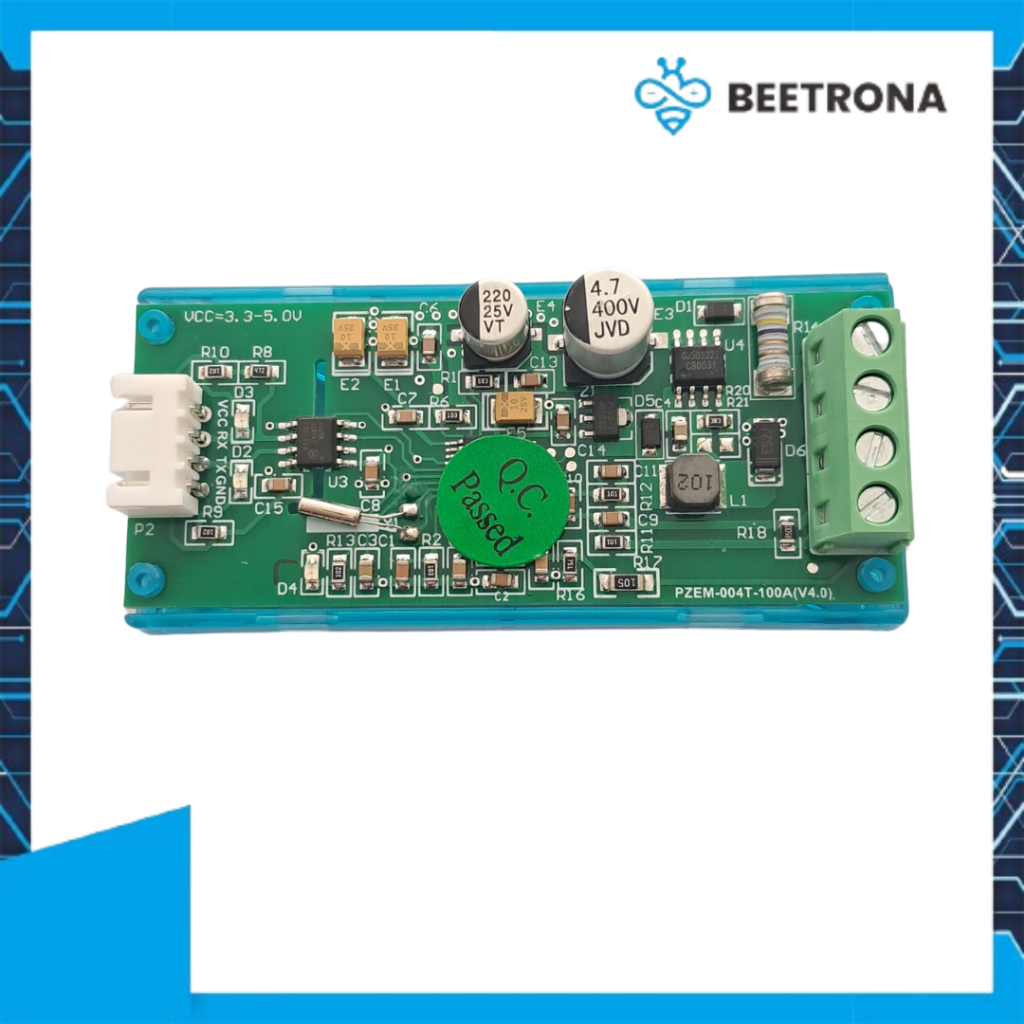

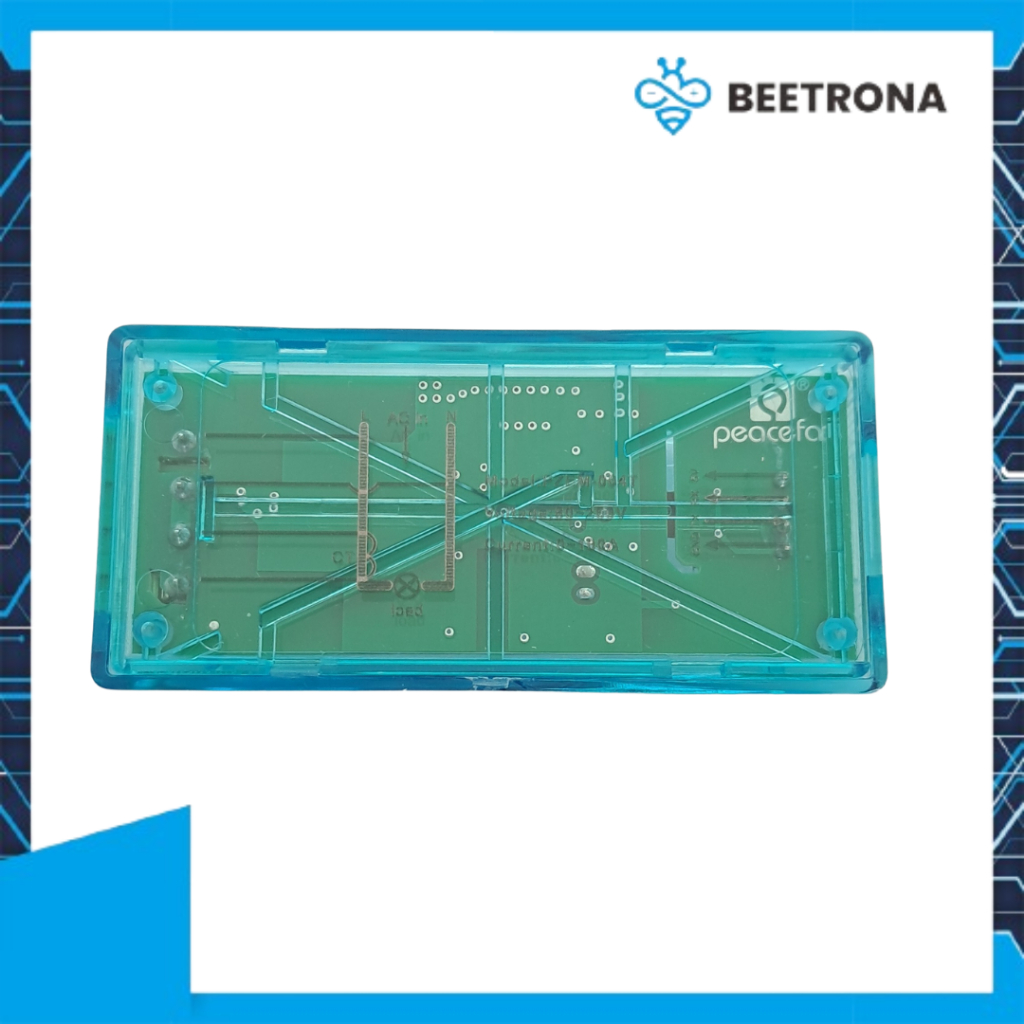

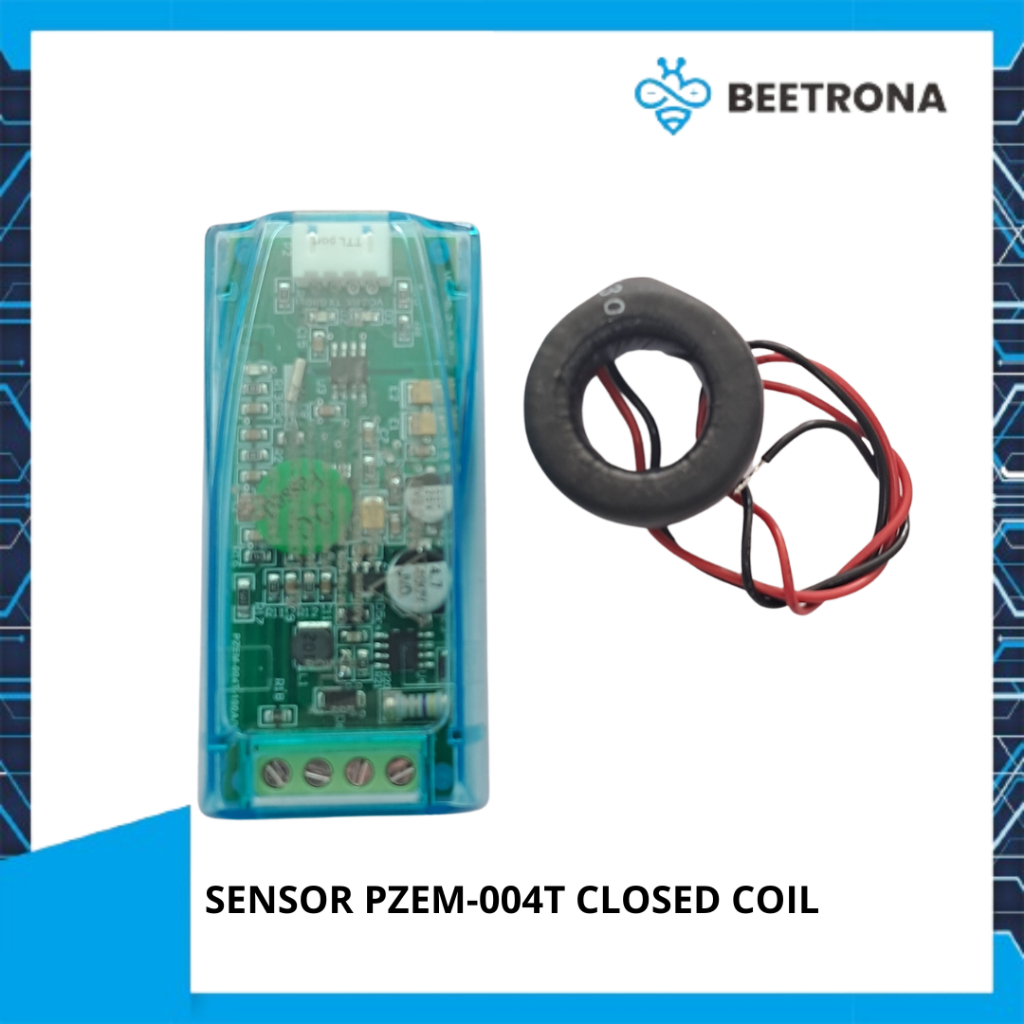

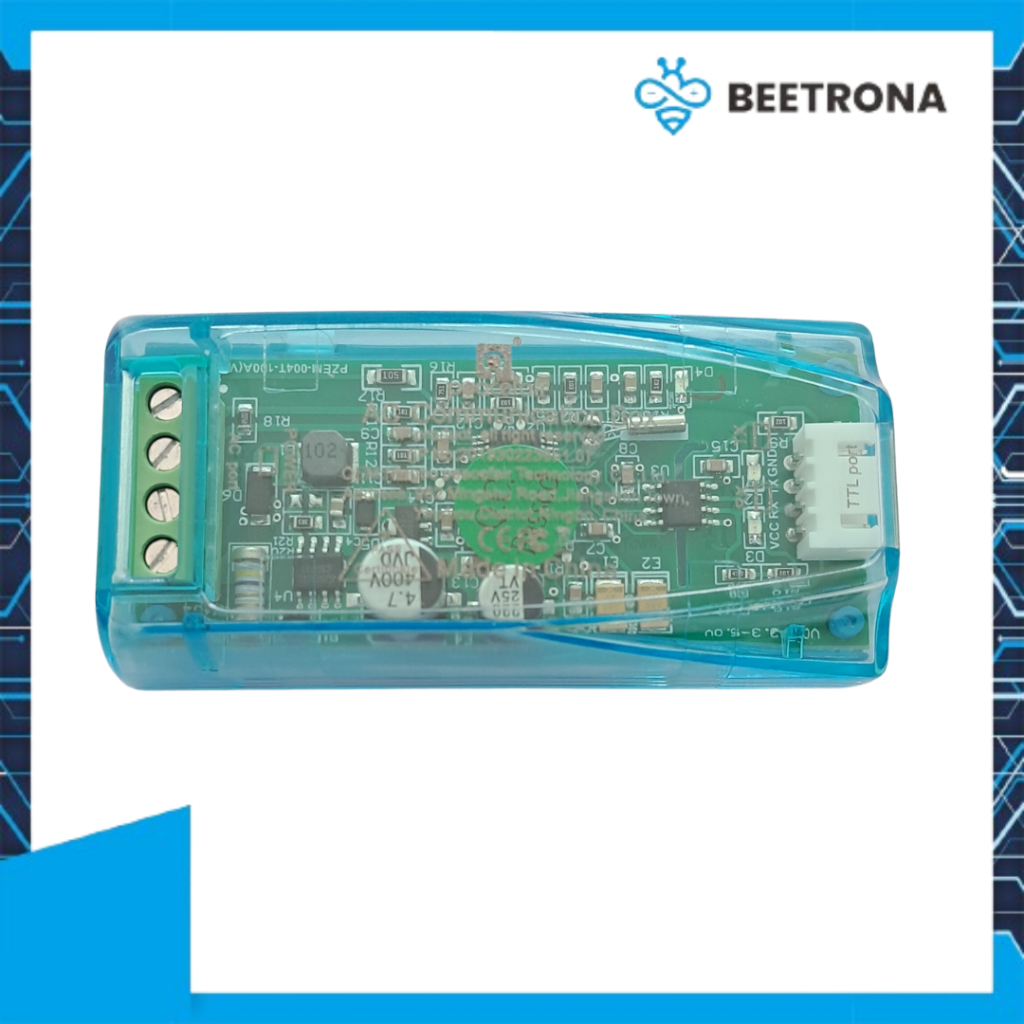

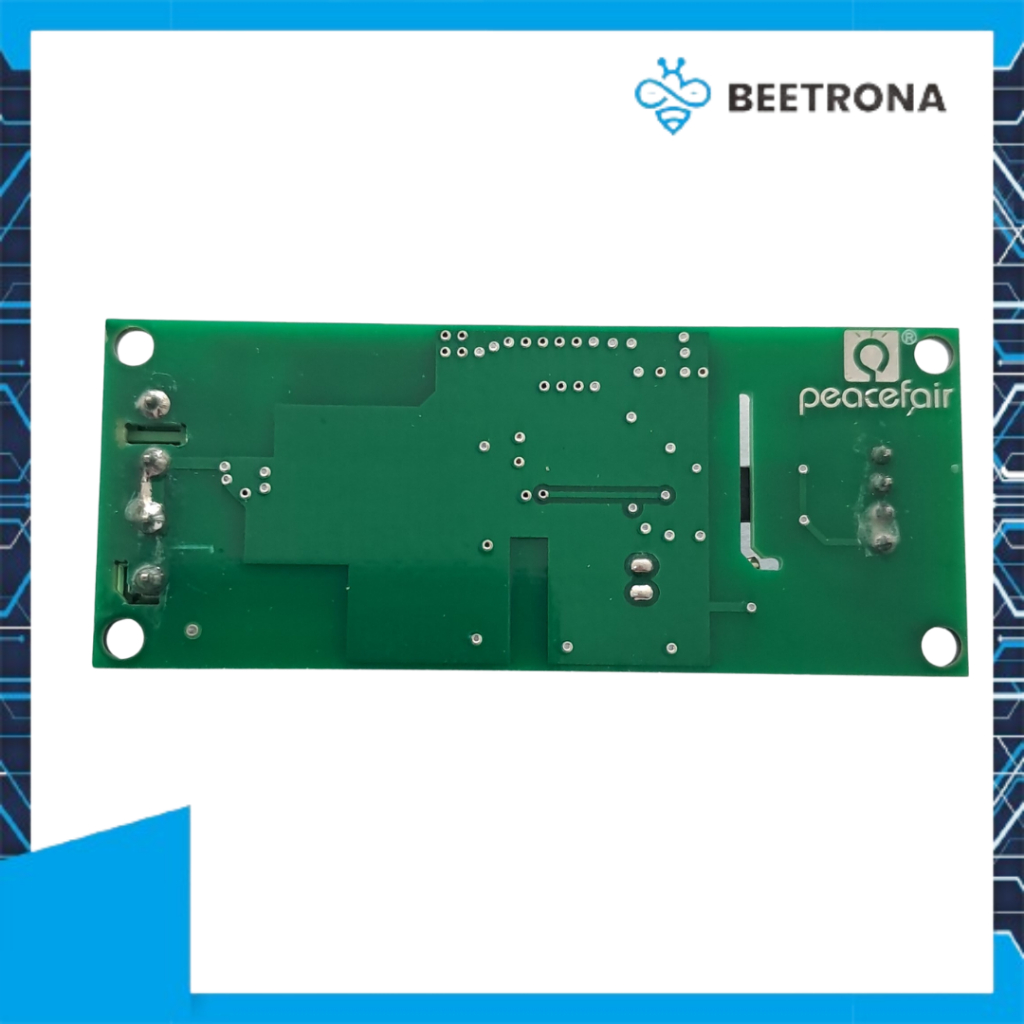

PZEM-004T Closed Coil CT AC Voltage Current Monitoring Peacefair

PZEM-004T Closed Coil CT AC Voltage Current Monitoring Peacefair Module V4

– Voltage Measuring range :80 ~ 260V
– Voltage Resolution : 0.1V
– Voltage Measurement accuracy : 0.5%
– Current Measuring range : 0 ~ 100A(PZEM-004T-100A)
– Current Starting measure current : 0.02A(PZEM-004T-100A)
– Current Resolution : 0.001A
– Current Measurement accuracy : 0.5%
– Active power Measuring range : 0 ~ 23kW(PZEM-004T-100A)
– Active power Starting measure power : 0.4W
– Active power Resolution : 0.1W
– Active power Measurement accuracy : 0.5%
– Frequency Measuring range : 45Hz ~ 65Hz
– Frequency Resolution : 0.1Hz
– Frequency Measurement accuracy: 0.5%
