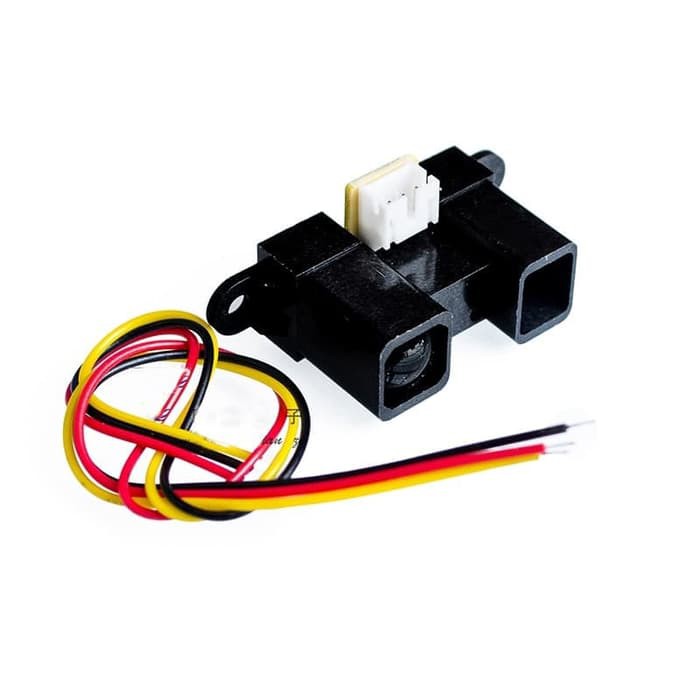

Sharp GP2Y0A21YK0F Analog Distance Sensor Jalrak 20-15cm with cable
Feature summary
Operating voltage: 4.5 V to 5.5 V
Average current consumption: 33 mA (note: this sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line)
Distance measuring range: 20 cm to 150 cm (8″ to 60″)
Output type: analog voltage
Output voltage differential over distance range: 2.05 V (typical)
Update period: 38 ± 10 ms
Size: 44.5 mm × 18.9 mm × 21.6 mm (1.75″ × 0.75″ × 0.85″)
Weight: 5 g (0.18 oz)
