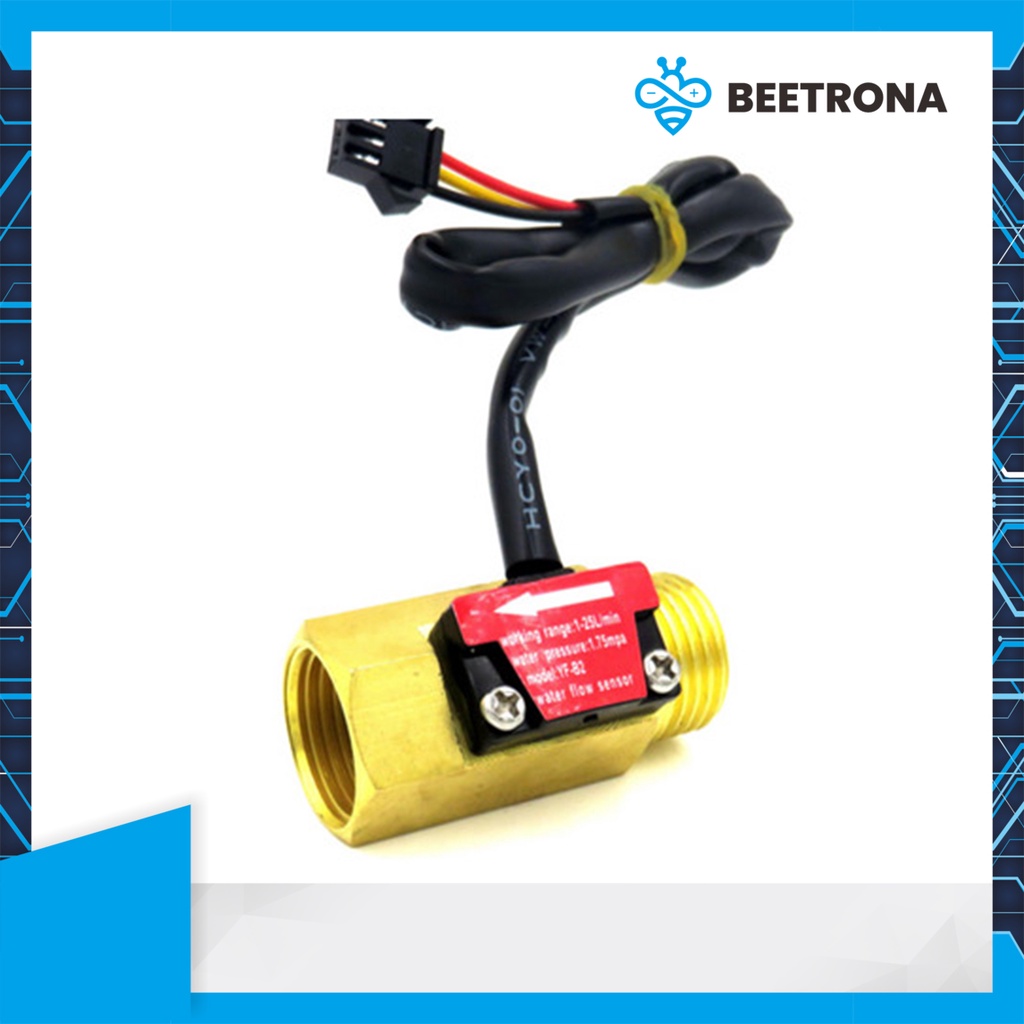

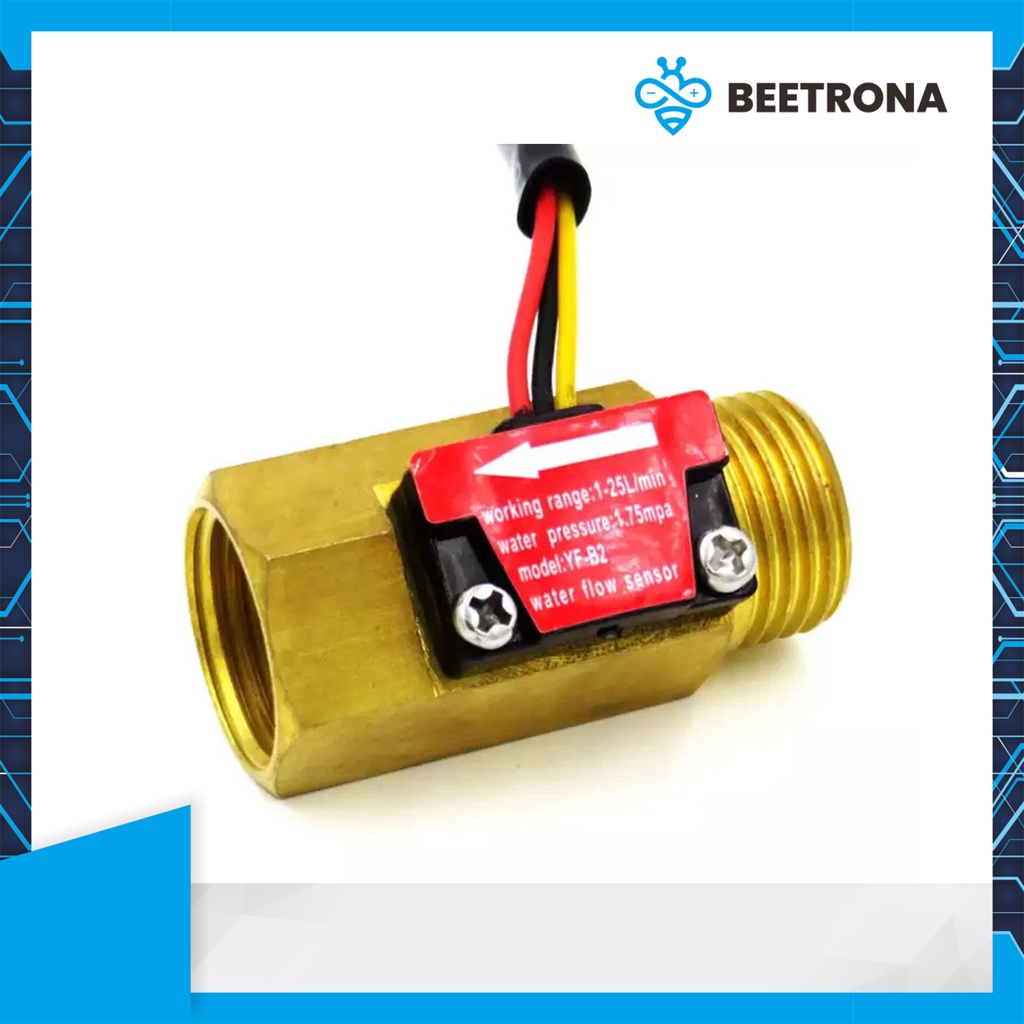

Sensor Water Flow Aliran Air YF B2 Kuningan G 0.5Inch

Sensor YF-B2 YFB2 YF B2 Aliran Air Water Flow Meter 0.5 inch Kuningan

Specs :
Weight : G.W 98.5g || N.W 98.5g
Working Voltage : 5 – 15Volt
Max. Working Current : 15mA (5Volt)
Flow Rate Range : 1~25Litre/min
Load Capacity : ≤10mA (DC 5V)
Operating Temperature : 0 ~ 80℃
Liquid Temperature :0 ~ 120℃
Water Pressure : ≤1.75MPa

Storage Temperature : -25 ～ +80℃

Interface Dimensions : G0.5 Inch

Error Range : 1~30Litre\Min ±3%

Output Pulse High Level : DC 4.7Volt (Input Voltage DC5V)

Output Pulse Low Level : DC 0.5Volt (Input Voltage DC5V)
