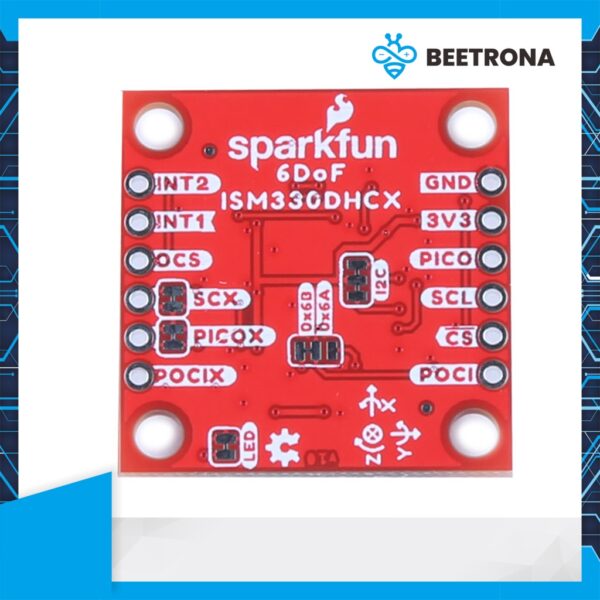

SparkFun 6DoF IMU ISM330DHCX Gyroscope Accelerometer Sensor Module
Features :
– 1.71V to 3.6V supply voltage
– ±2/±4/±8/±16g 3D accelerometer with selectable full scale
– ±125/±250/±500/±1000/±2000/±4000dps 3D gyroscope with extended selectable full scale
– Temperature range : -40 to +105°C
– Embedded compensation for high stability over temperature
– Auxiliary SPI serial interface for data output of gyroscope and accelerometer (OIS and other stabilization applications)
– Six-channel synchronized output
– Sensor hub feature to collect data from additional external sensors
– Embedded smart FIFO up to 9kB
– Programmable Finite State Machine to process data from accelerometer, gyroscope, and external sensors
– Machine Learning Core
– Smart embedded functions and interrupts: tilt detection, free-fall, wakeup, 6D/4D orientation, click and double-click
– Embedded pedometer, step detector and counter
– Embedded temperature sensor
– I2C Address : 0x6B (Default), 0x6A (Alternate)
– 2x Qwiic Connection Ports
