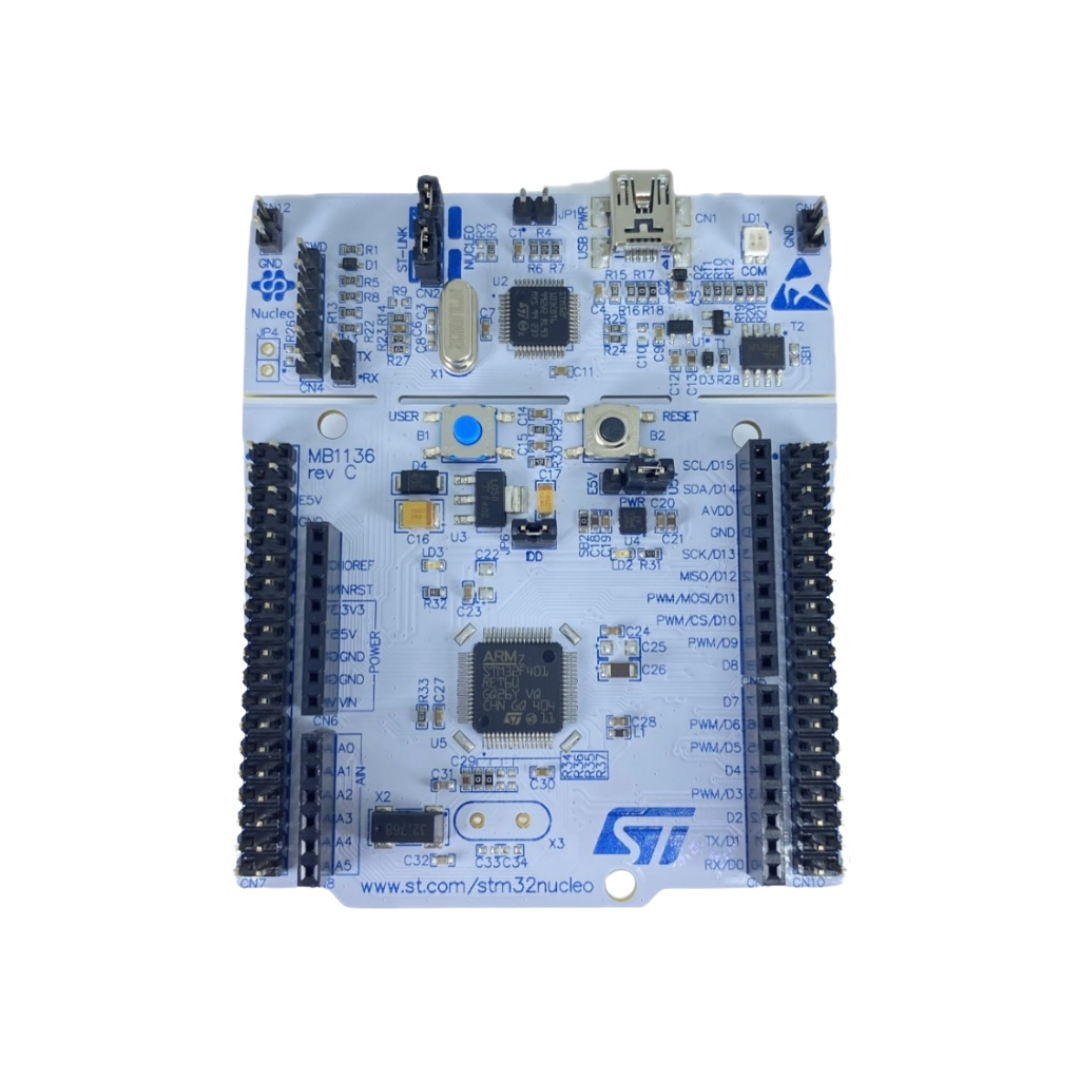

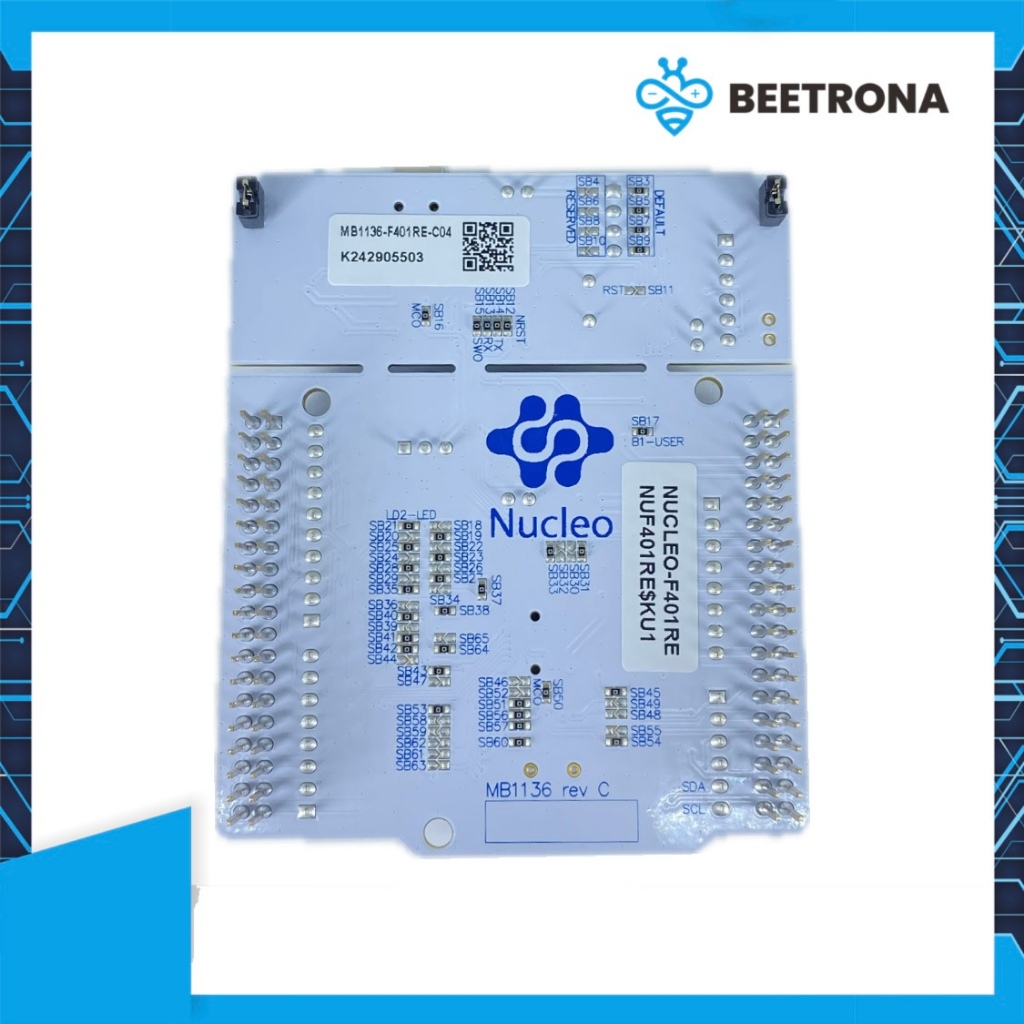

STM32 Nucleo F401RE

STM32F401RE
Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut

Description
The STM32F401xD/xE devices are based on the high-performance Arm® Cortex® -M4 32-bit RISC core operating at a frequency of up to 84 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision, which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU), which enhances application security.
The STM32F401xD/xE incorporate high-speed embedded memories (512 Kbytes of flash memory, 96 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.
All features
– Includes ST state-of-the-art patented technology
– Core: Arm® 32-bit Cortex®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
– Memories : Up to 512 Kbytes of flash memory ; up to 96 Kbytes of SRAM ; 512 bytes of OTP memory
– Clock, reset, and supply management : 1.7 V to 3.6 V application supply and I/Os ; POR, PDR, PVD, and BOR ; 4-to-26 MHz crystal oscillator ; Internal 16 MHz factory-trimmed RC ; 32 kHz oscillator for RTC with calibration ; Internal 32 kHz RC with calibration
– Power consumption : Run: 146 µA/MHz (peripheral off) ; Stop (Flash in Stop mode, fast wake-up time): 42 µA typical at 25 °C; 65 µA max at 25 °C ; Stop (Flash in Deep power down mode, fast wake-up time): down to 10 µA at 25 °C; 30 µA max at 25 °C ; Standby: 2.4 µA at 25 °C / 1.7 V without RTC; 12 µA at 85 °C at 1.7 V ; VBAT supply for RTC: 1 µA at 25 °C
– 1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
– General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
– Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer
– Debug mode : Serial wire debug (SWD) & JTAG interfaces ; CortexÒ-M4 Embedded Trace Macrocell™
– Up to 81 I/O ports with interrupt capability : Up to 78 fast I/Os up to 42 MHz ; All I/O ports are 5 V-tolerant
– Up to 12 communication interfaces : Up to 3 x I2C interfaces (SMBus/PMBus) ; Up to 3 USARTs (2 x 10.5 Mbit/s, 1 x 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control) ; Up to 4 SPIs (up to 42Mbit/s at fCPU = 84 MHz), SPI2 and SPI3 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or
