STM32 Nucleo F407G

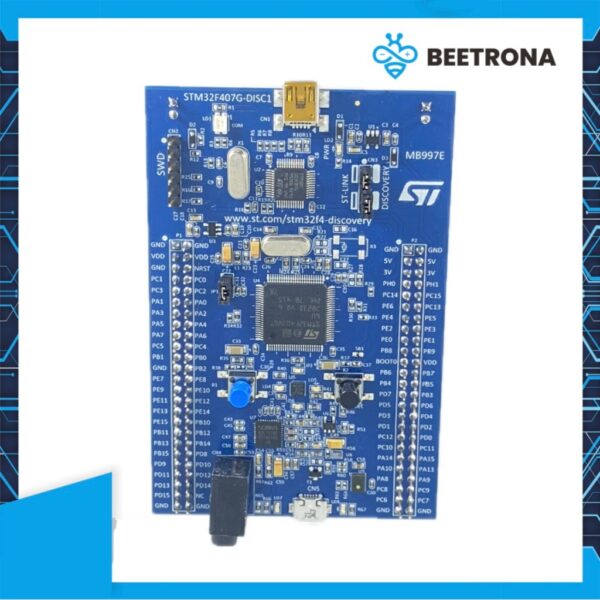

STM32F407G-DISC1

Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut

Description
The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.
Based on the STM32F407VGT6, it includes an ST-LINK/V2-A embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.
A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.

Key Features
– STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
– On-board ST-LINK/V2-A
– ARM® mbed™ -enabled (http://mbed.org)
– USB ST-LINK with re-enumeration capability and three different interfaces: Virtual com port ; Mass storage ; Debug port
– Board power supply: through USB bus or from an external 5 V supply voltage
– External application power supply: 3 V and 5 V
– LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
– MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
– CS43L22, audio DAC with integrated class D speaker driver
– Eight LEDs: LD1 (red/green) for USB communication ; LD2 (red) for 3.3 V power on ; Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue) ; 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
– Two push buttons (user and reset)
– USB OTG FS with micro-AB connector
– Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
