Features
Operate on low voltage
10 mV/°C scale factor
±2°C Temperature accuracy
±0.5°C linearity
External Calibration not required
Stable with large capacitive loads
Specified −40°C to +125°C, operation to +150°C
Less than 50 µA quiescent current
Auto Shutdown current 0.5 µA max
Low self-heating Qualified for automotive applications
Technical Specification
Supply Voltage: 2.7 V to 5.5 V
Supply Current up to 50uA
Ramp-Up Rate 3°C/sec
Ramp-Down Rate −6°C/sec
Offset Voltage: 0.5V
Output voltage at 25°C: 750mV
Device turning ON time: 0.5ms
Operating Temperature Range: −55°C to +150°C
Storage Temperature Range: −65°C to +160°C

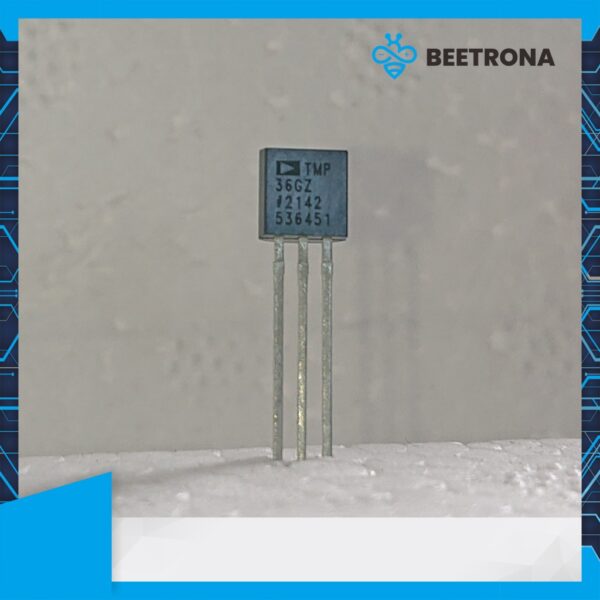

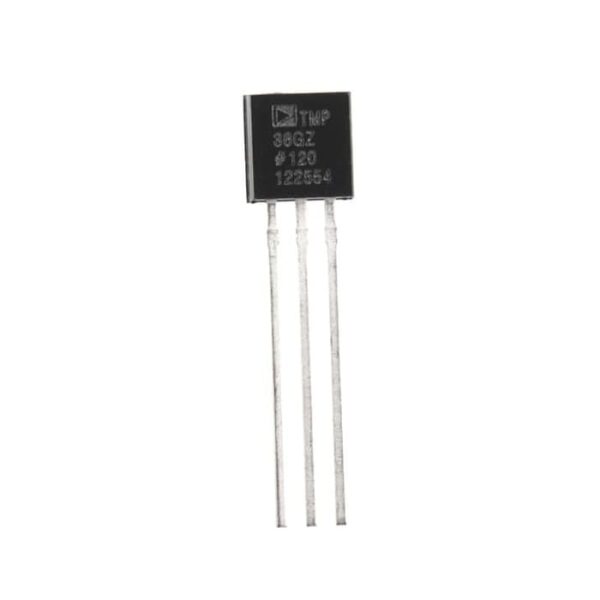

Package Available: TO-92; SOIC_N; SOT-23
