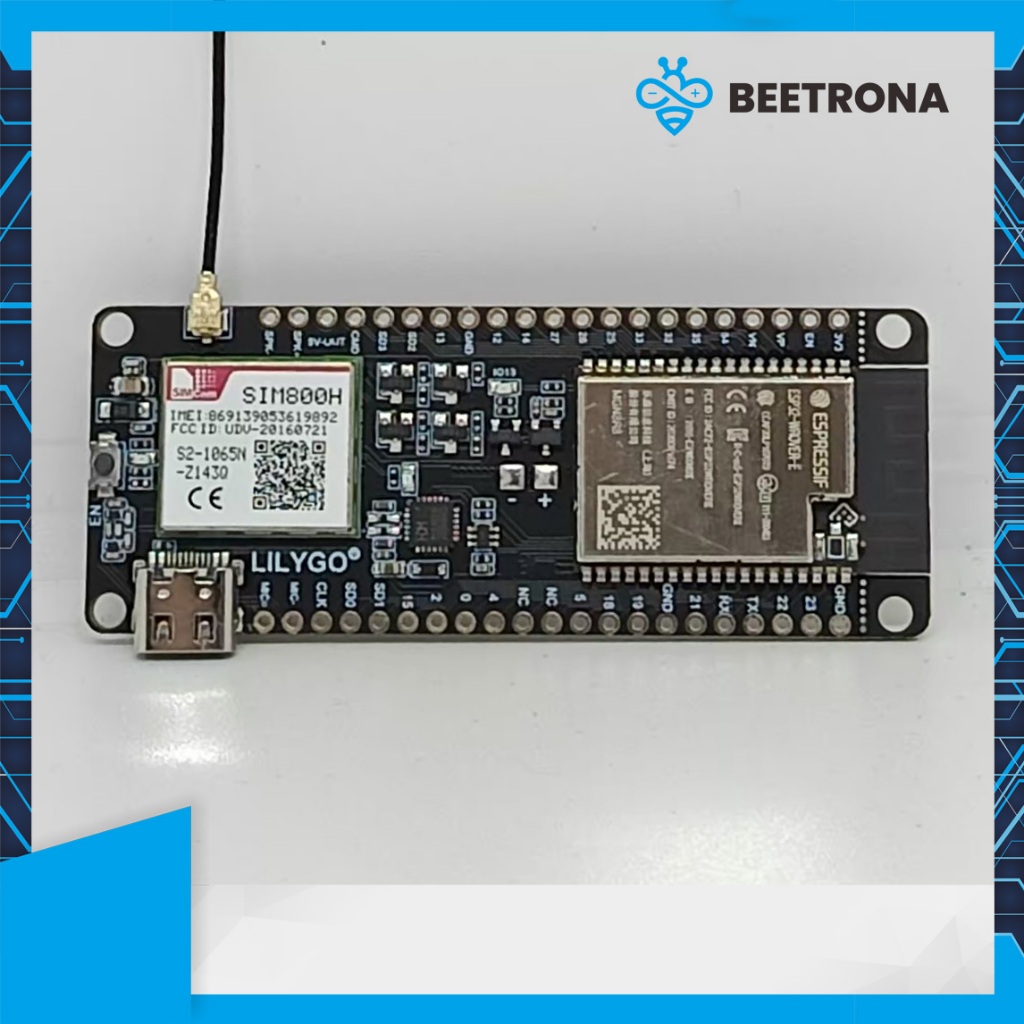

TTGO T-CALL SIM800H ESP32 CH9102F V1.4 Module GSM GPRS TCALL

* IMEI BELUM TERDAFTAR

TTGO T-CALL SIM800H ESP32 CH9102F V1.4 Module GSM GPRS TCALL Arduino

Specification :
-Chipset : ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
– Flash : QSPI flash 4MB
– SRAM : 520kB SRAM
– Reset Button : Yes
– Modular interface : UART, SPI, SDIO, I2C, PWM, TV PWM, I2S, IRGPIO
– On Board Clock : 40MHz crystal oscillator
– Working voltage : 2.7V-3.6V
– Working current : About 70mA
– Sleep current : About 1.1mA
– SIM card : Only supports Nano SIM card
– Working temperature range : -40°C ~ +85°C
– Size : 78.83mm*28.92mm*8.06mm
– Weight : 11.77g

Power Supply Specifications :
– Power Supply Port : USB 5V/1A
– USB Port : USB Type-C
– Charging current : 500mA
– Battery : 3.7V lithium battery
– Battery Port : JST Connector 2Pin 1.25mm

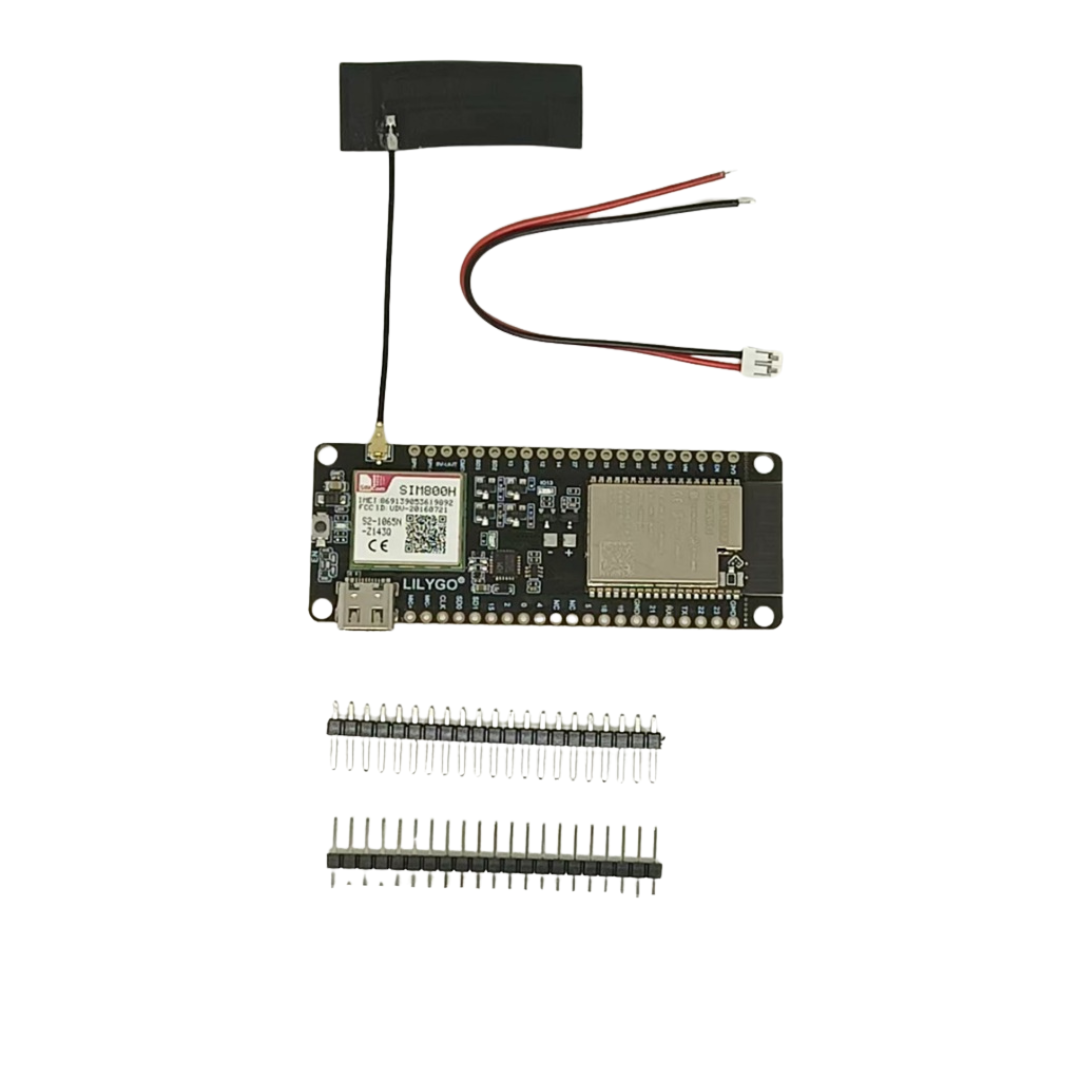

Package Include :
-TTGO T-CALL SIM800L ESP32 Board x1
-Pin Header Male x2
-JST Power Cable
-PCB Antenna

Untuk Spesifikasi lebih lanjut bisa cek website LILYGO Langsung
