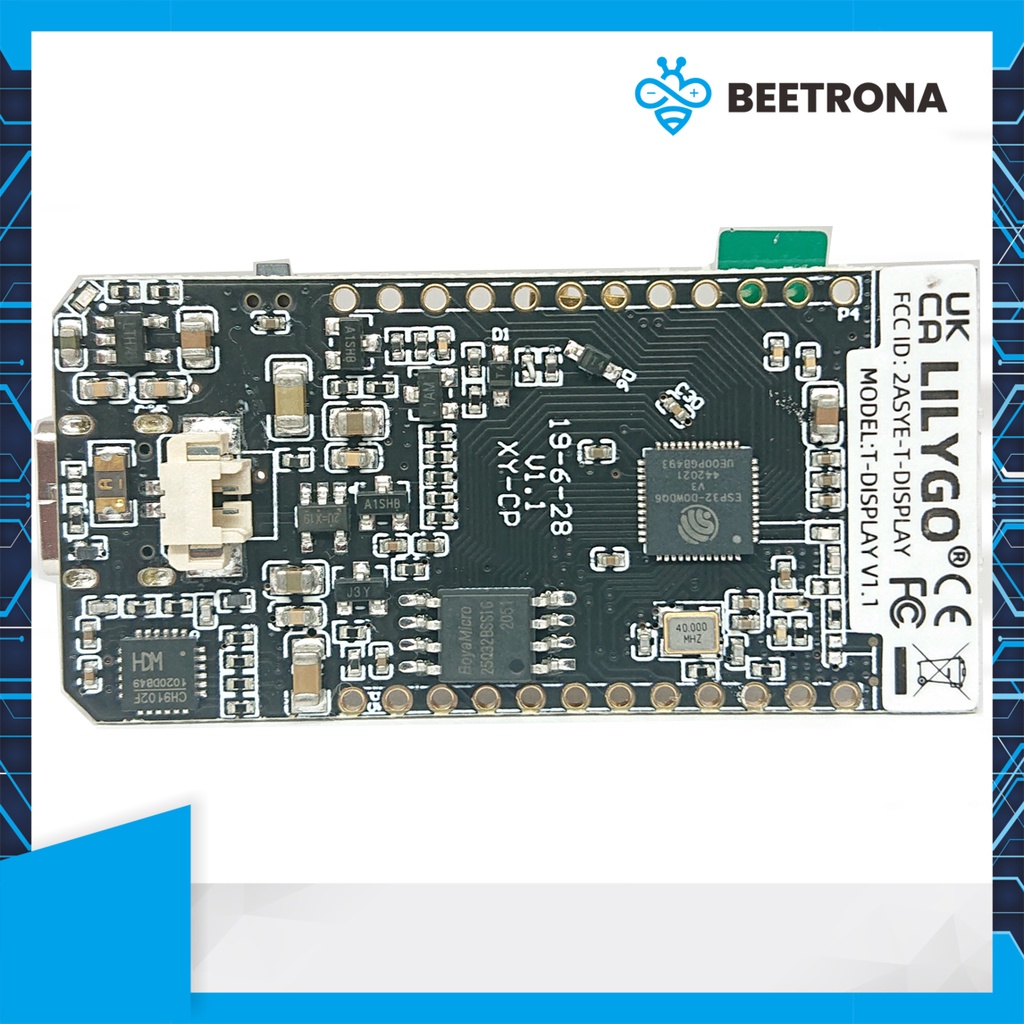

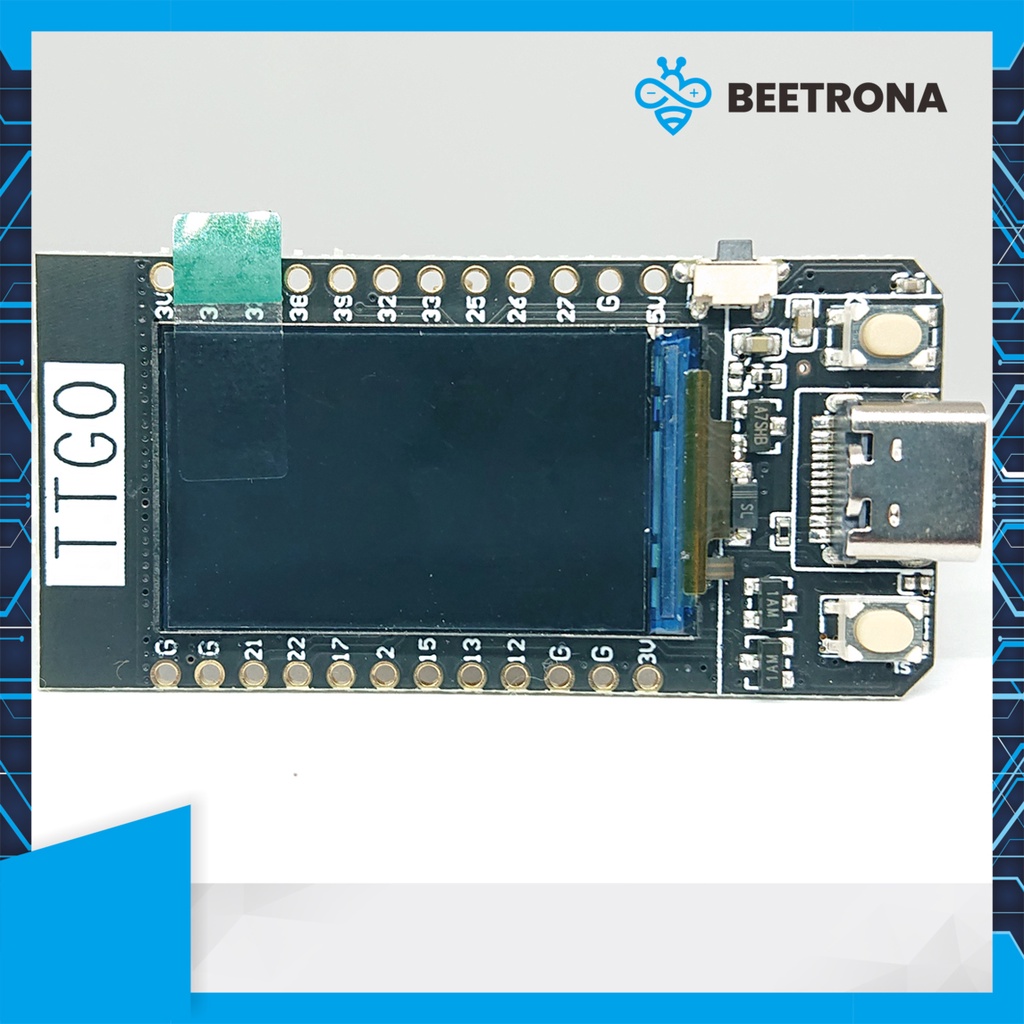

TTGO T-Display ESP32 CP2104 1.14 Inch LCD

TTGO T-Display ESP32 CP2104 1.14 Inch LCD Wifi Bluetooth Arduino

Specification :
– Chipset : ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
– FLASH : QSPI flash 4MB
– SRAM : 520 kB SRAM
– Button : Reset
– Modular interface : UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier
– LCD Display : IPS ST7789V 1.14 Inch
– Working voltage : 2.7V-4.2V
– Working current : About 67MA
– Sleep current : About 350uA
– Working temperature range : -40°C ~ +85°C
– Size&Weight : 51.52*25.04*8.54mm
– Weight : 7.81g

Power Supply Specifications :
– Power Supply Port : USB 5V/1A
– USB Port : USB Type-C
– Charging current : 500mA
– Battery : 3.7V lithium battery
– Battery Port : JST Connector 2Pin 1.25mm

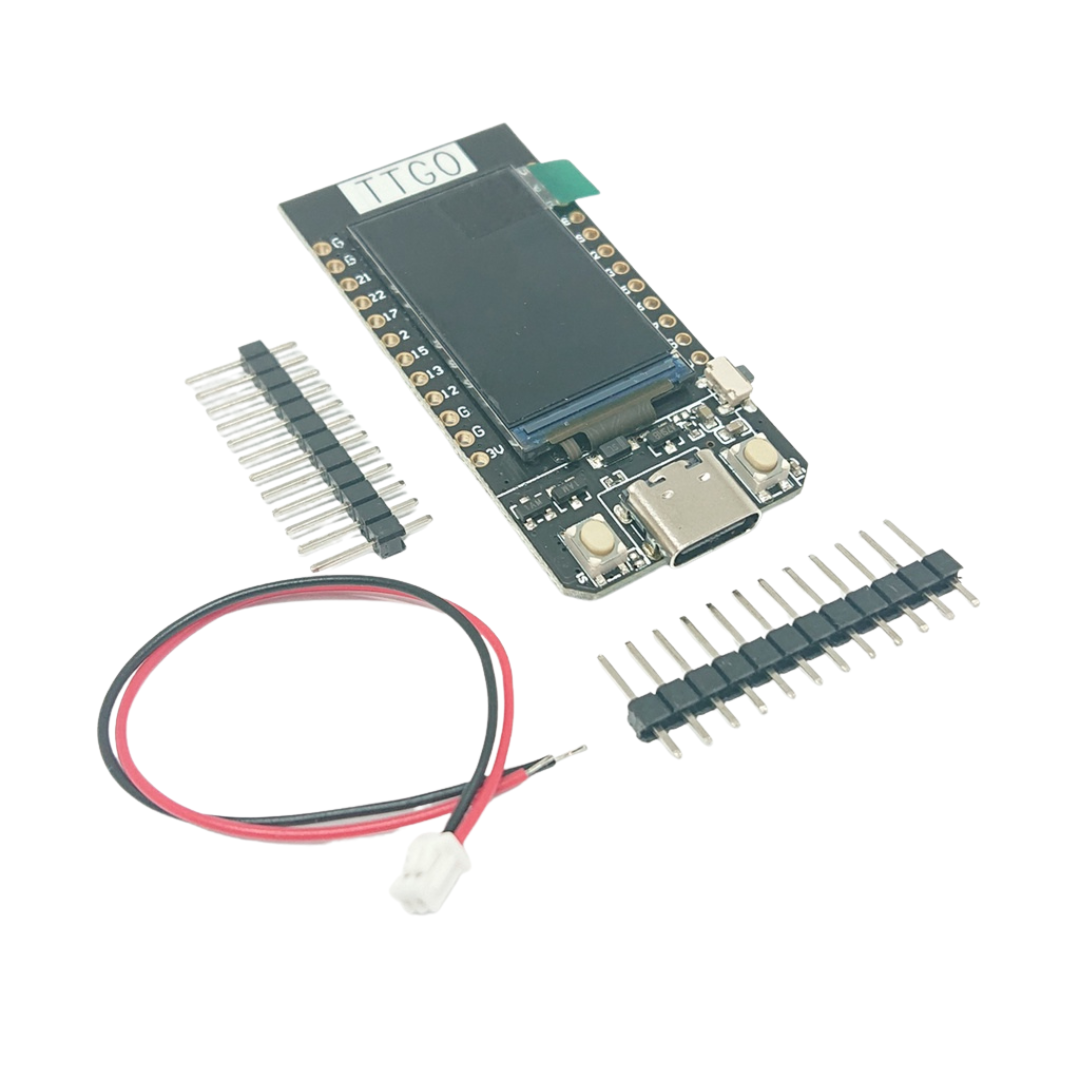

Package Include :
-TTGO T-DISPLAY ESP32 Oled 1.14 Inch Board x1
-Pin Header Male x2
-JST Power Cable

untuk spesifikasi lebih lanjut bisa dicek di website TTGO LILY
