DFRobot Fermion MEMS H2 & NOx Gas Detector – MiCS-2714 Sensor (1-1000ppm, Breakout)

DFRobot Fermion MEMS H2&NOx Gas Detector MiCS Sensor

Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut

Introduction
This industrial-grade MEMS sensor detects dangerous H2 (1-1000ppm) and NOx (0.05-10ppm) concentrations with 85°C temperature tolerance – critical for chemical plants and manufacturing safety.
Multi-Gas Detection Capability
Simultaneously monitors hydrogen (H2), nitric oxide (NO), and nitrogen dioxide (NO₂) – three of the most dangerous industrial gases with explosive/toxicity risks.
Low-Power Operation
0.45W consumption with enable/disable pin control extends battery life in continuous monitoring systems (5V DC compatible with Arduino/Raspberry Pi).
Precision Analog Output
Generates linear voltage signals (0-5V) proportional to gas concentrations, ready for integration with PLCs and microcontrollers via included conversion formulas.
Industrial Durability
Withstands extreme -30°C to 85°C environments and 95% humidity (non-condensing) – outperforms standard environmental sensors in harsh conditions.

Specification

– Detection Range: H₂: 1-1000ppm | NO₂: 0.05-10ppm
– Output: Analog voltage (0-5V DC)
– Response Time: ＜30 seconds
– Power: 5V ±0.1V, 0.45W
– Operating Temp: -30°C to 85°C
– Lifespan: >2 years (normal use)

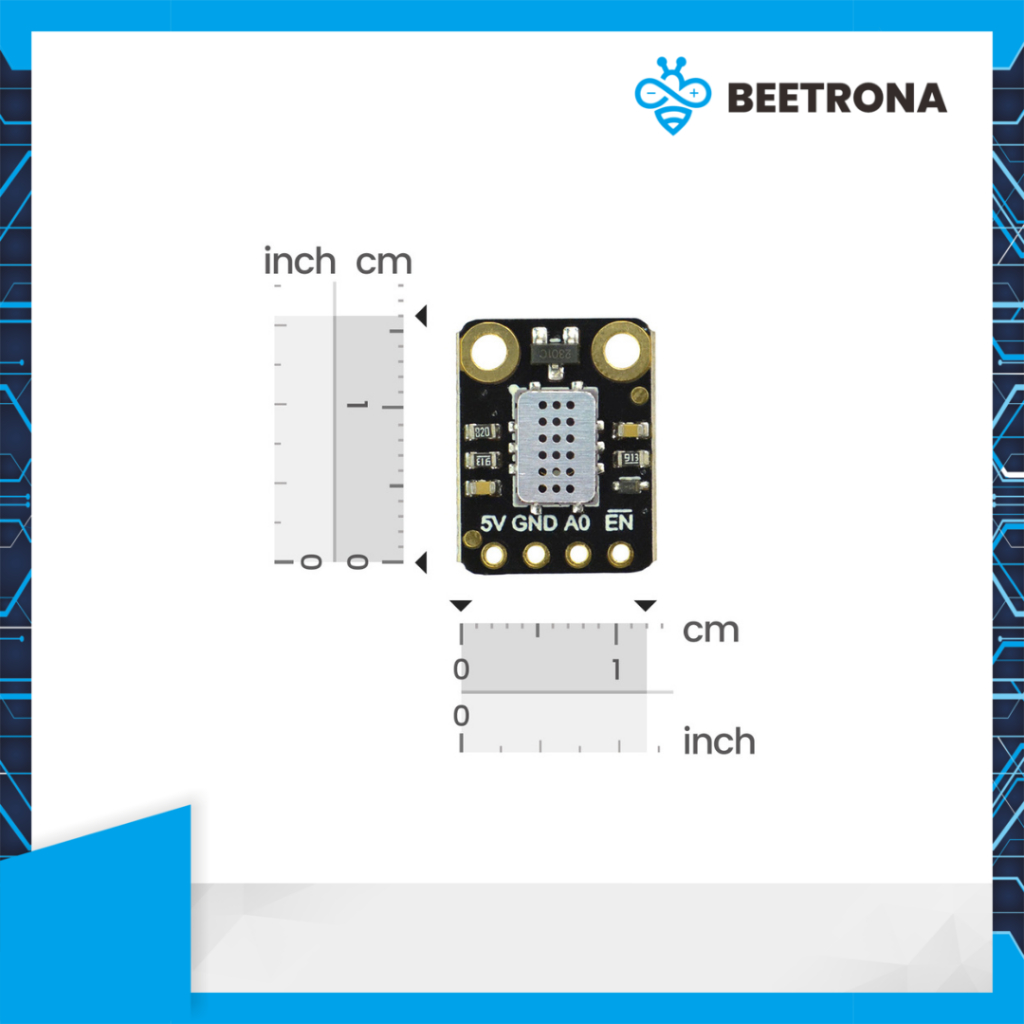

– Dimensions: 12×16mm (Breakout board)
– Interface: 3-pin Gravity connector

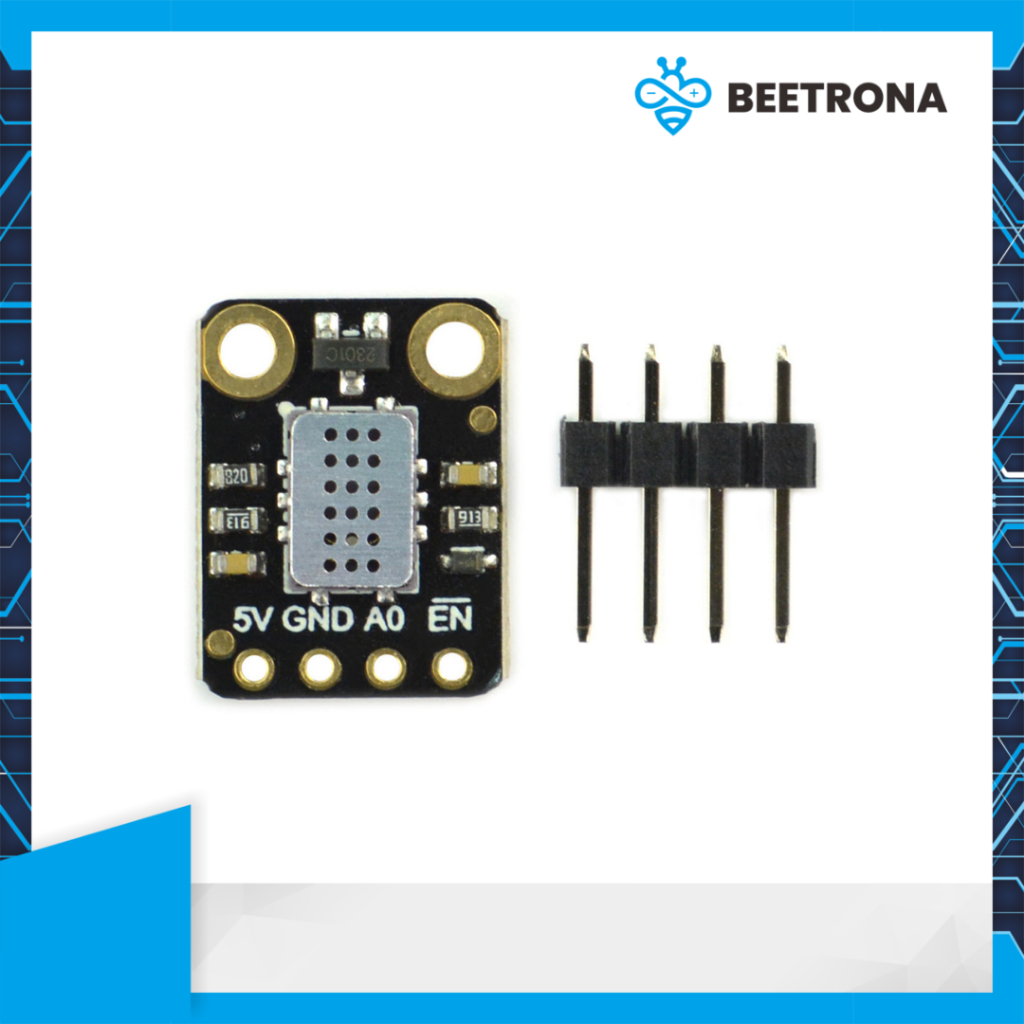

Shipping List
– Fermion: MEMS Gas Sensor – MiCS-2714 x1
– Black pin header-3Pin x1

SEN0441
