Introduction

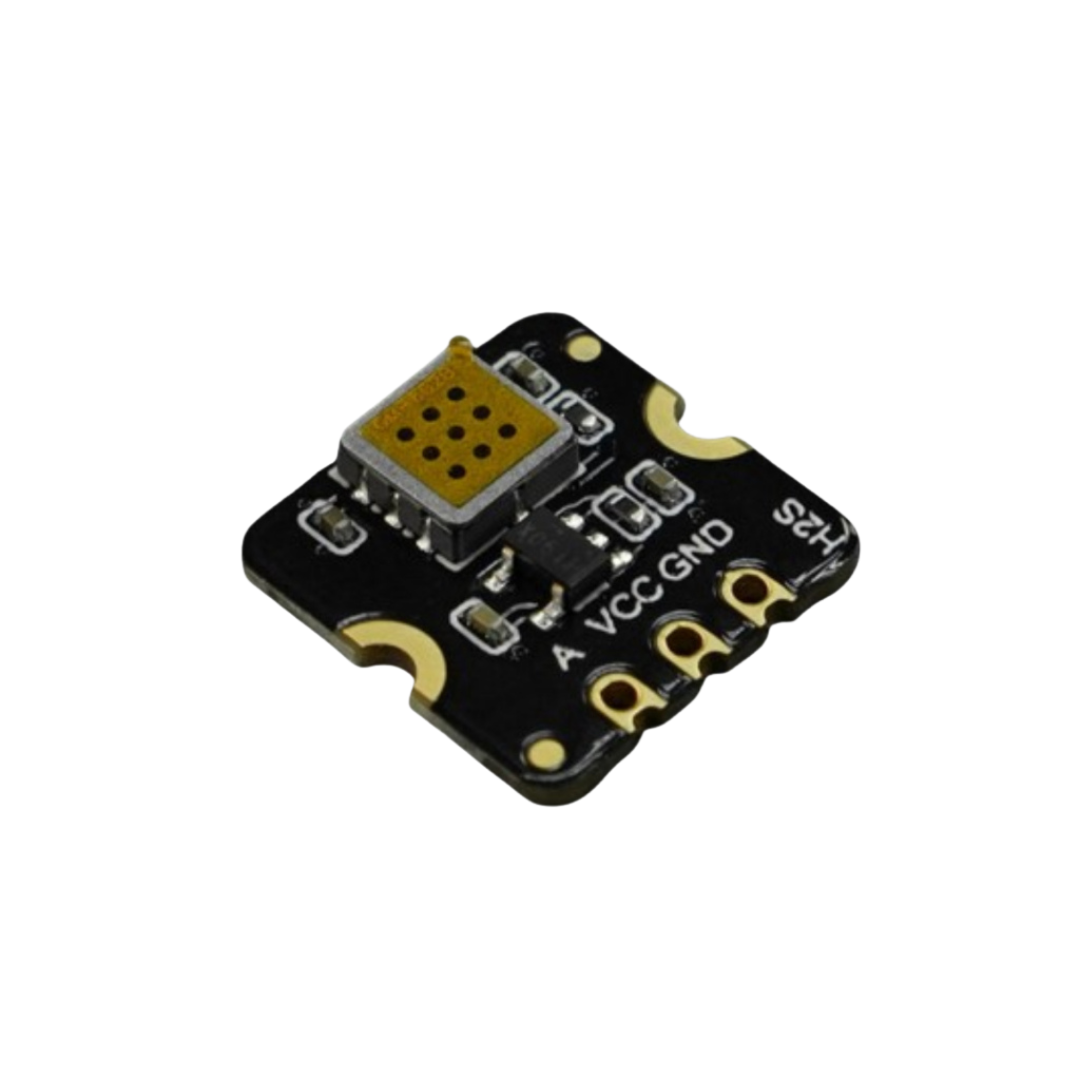

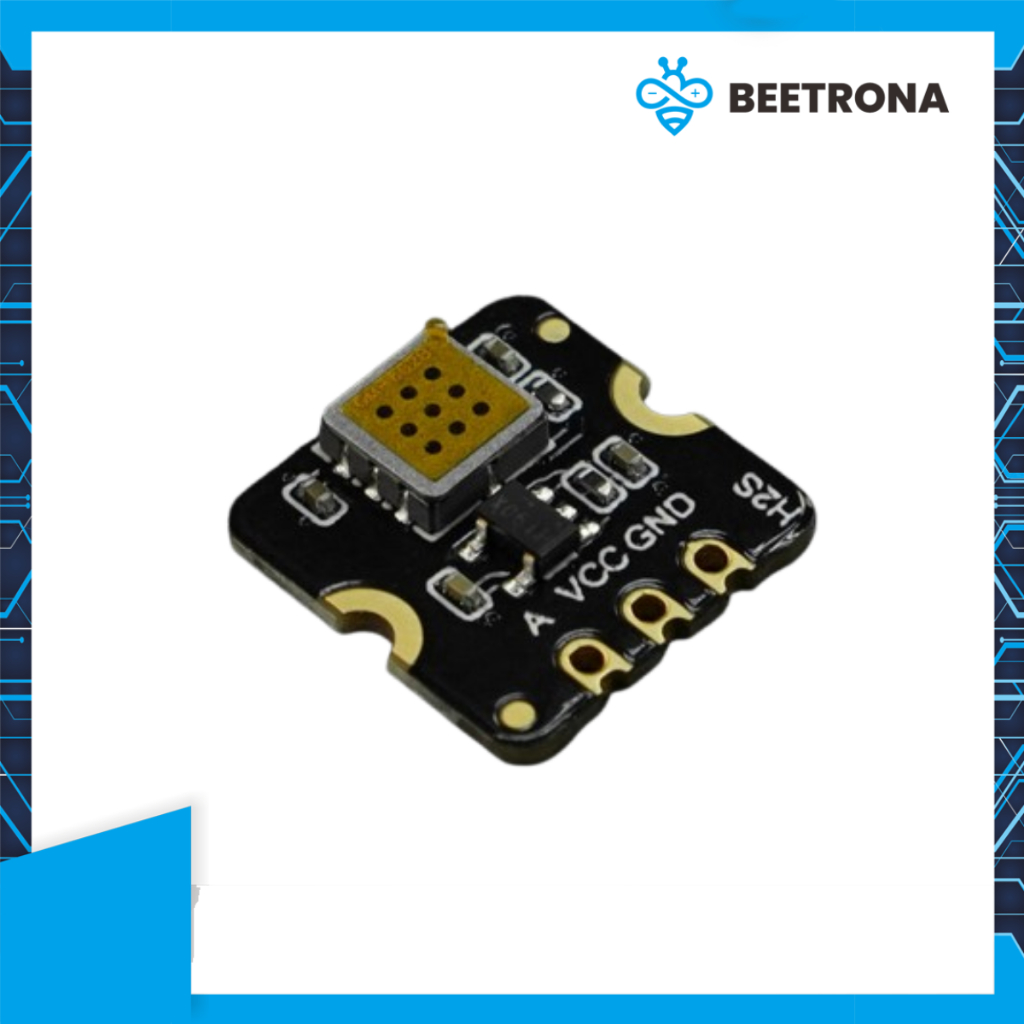

Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure the concentration of hydrogen sulfide gas, and is suitable for hydrogen sulfide detection in toilets, sewers, garbage stations and other places.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Please note: This sensor is capable of qualitative measurements only. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.

Specification
• Gas detected: Hydrogen Sulfide (H2S), Benzene
• Detection range: 0.5-50ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 50ppm H2S) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)

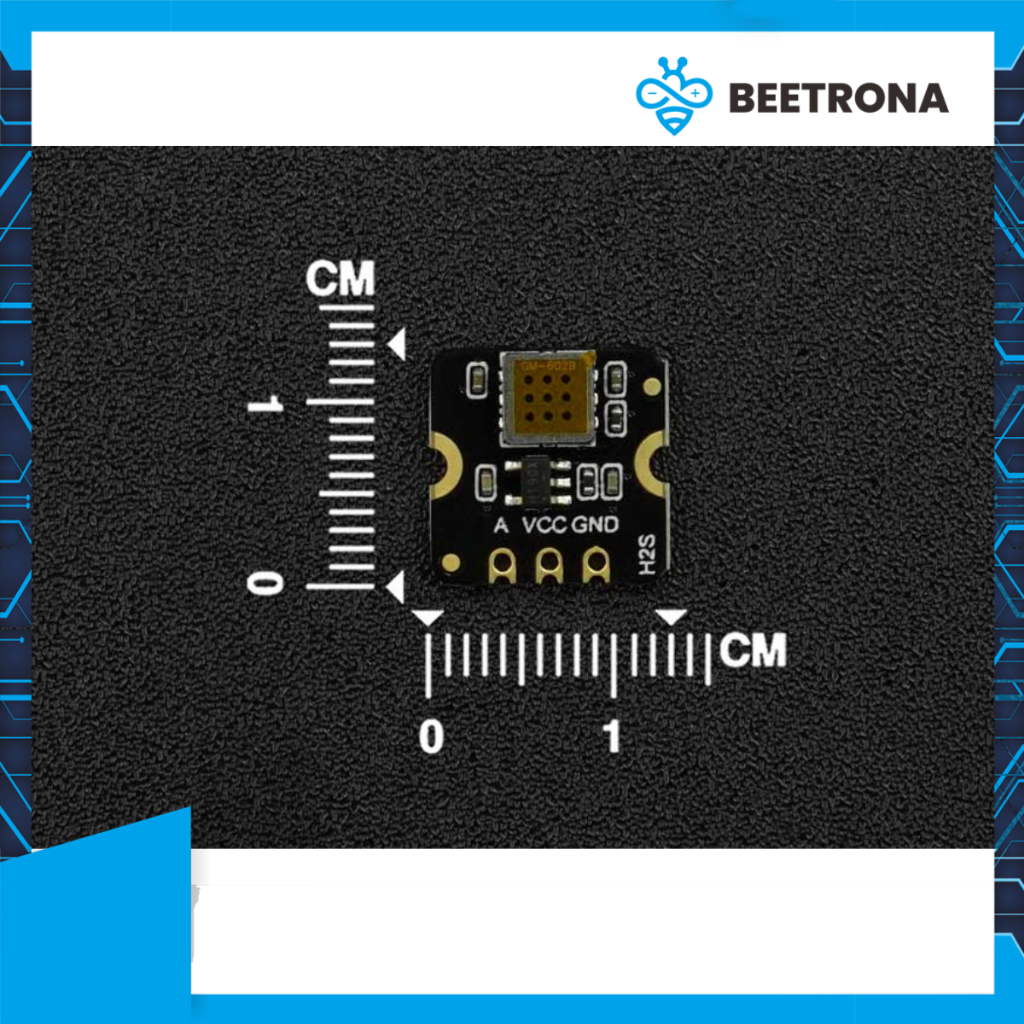

• Dimension：13×13 x 2.5mm/0.0.51×0.51×0.1”

Shipping List

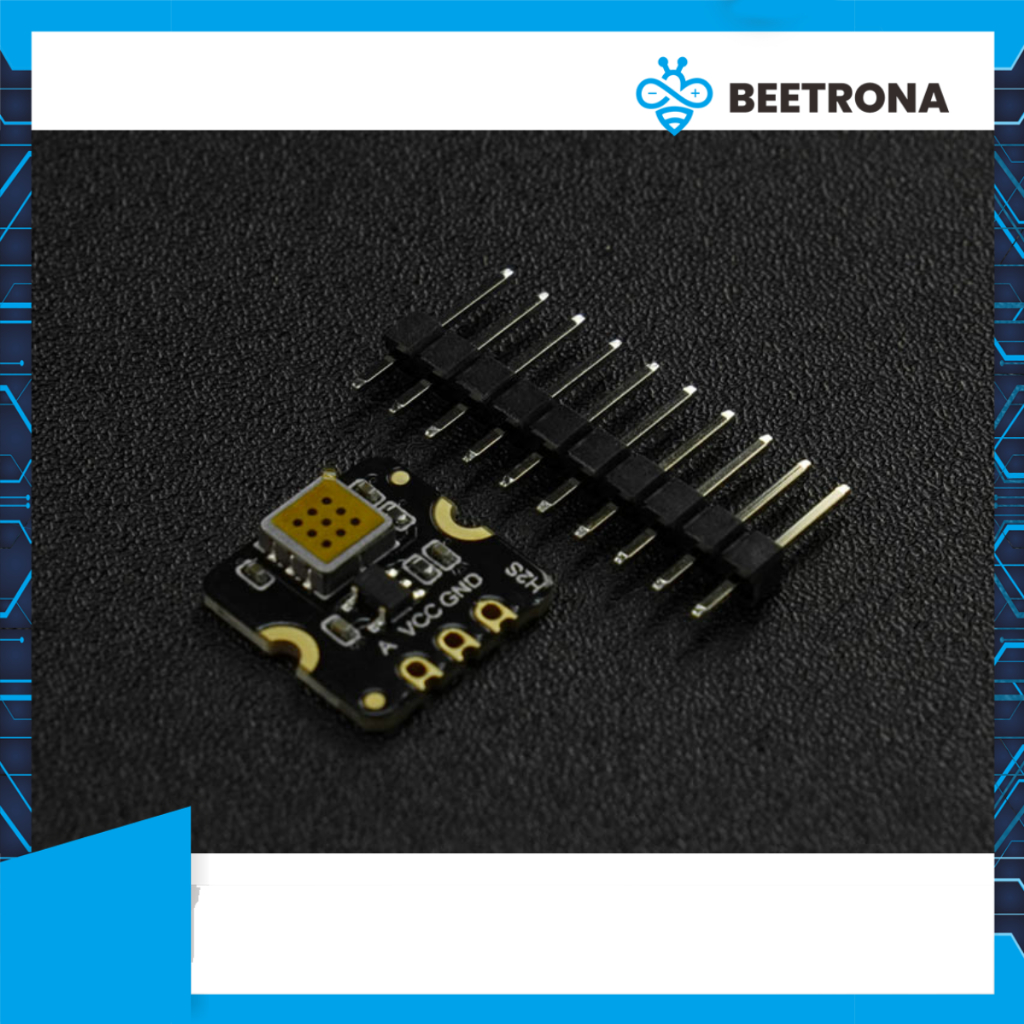

• Fermion: MEMS H2S Sensor (breakout) × 1
• 2.54mm pitch header pin × 1

Untuk Info lebih lanjut silahkan cek wiki DFRobot
https://wiki.dfrobot.com/SKU_SEN0568_Fermion_MEMS_H2S_Sensor_breakout
