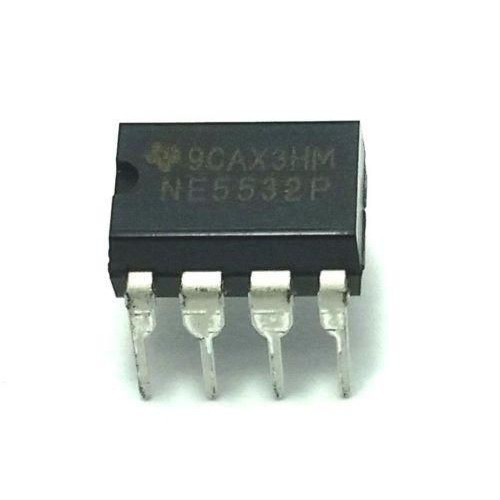

IC NE5532 NE 5532 Dual Low Noise Operational Amplifier Audio DIP8

Bukan Original Texas Instrument, jadi kualitas berbeda dengan yang original.

Number of channels (#) : 2
Total supply voltage (Min) (+5V=5, +/-5V=10) : 10
Total supply voltage (Max) (+5V=5, +/-5V=10) : 30
GBW (Typ) (MHz) : 10
Slew rate (Typ) (V/us) : 9
Rail-to-rail : No
Vos (offset voltage @ 25 C) (Max) (mV) : 4
Iq per channel (Typ) (mA) : 4
Vn at 1 kHz (Typ) (nV/rtHz) : 5
THD + N @ 1 kHz (Typ) (%) : 0.002
Operating temperature range (C) : 0 to 70
Architecture : Bipolar
CMRR (Typ) (dB) : 100
Input bias current (Max) (pA) : 800000
